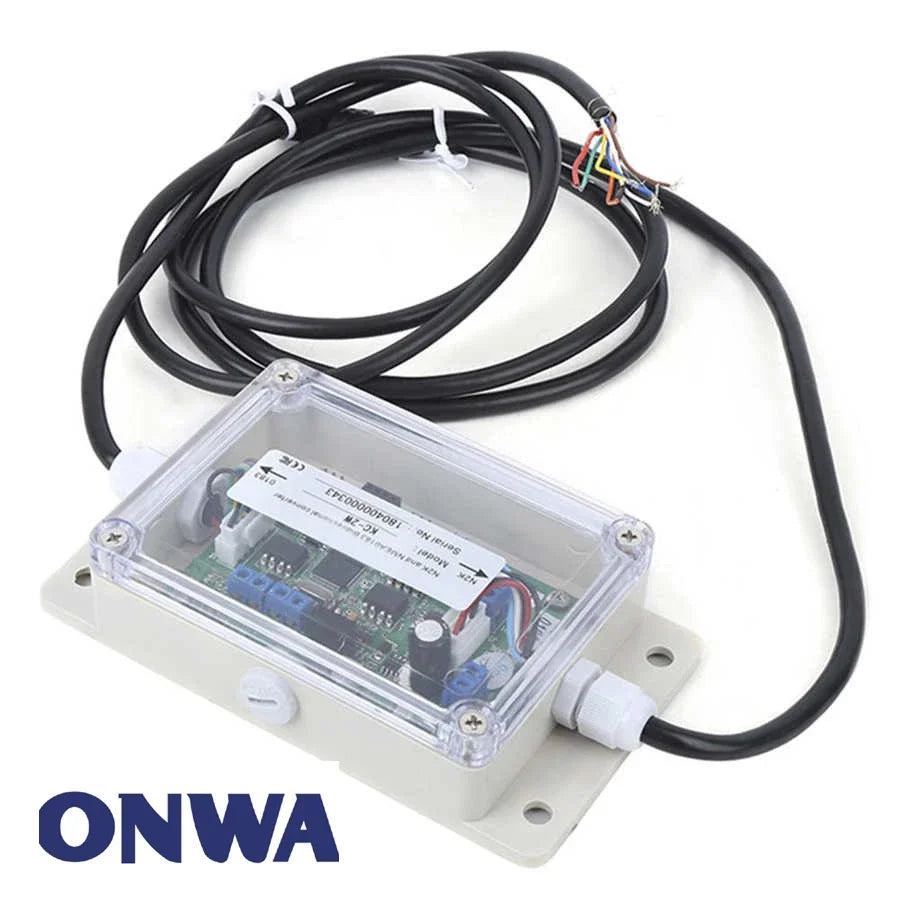

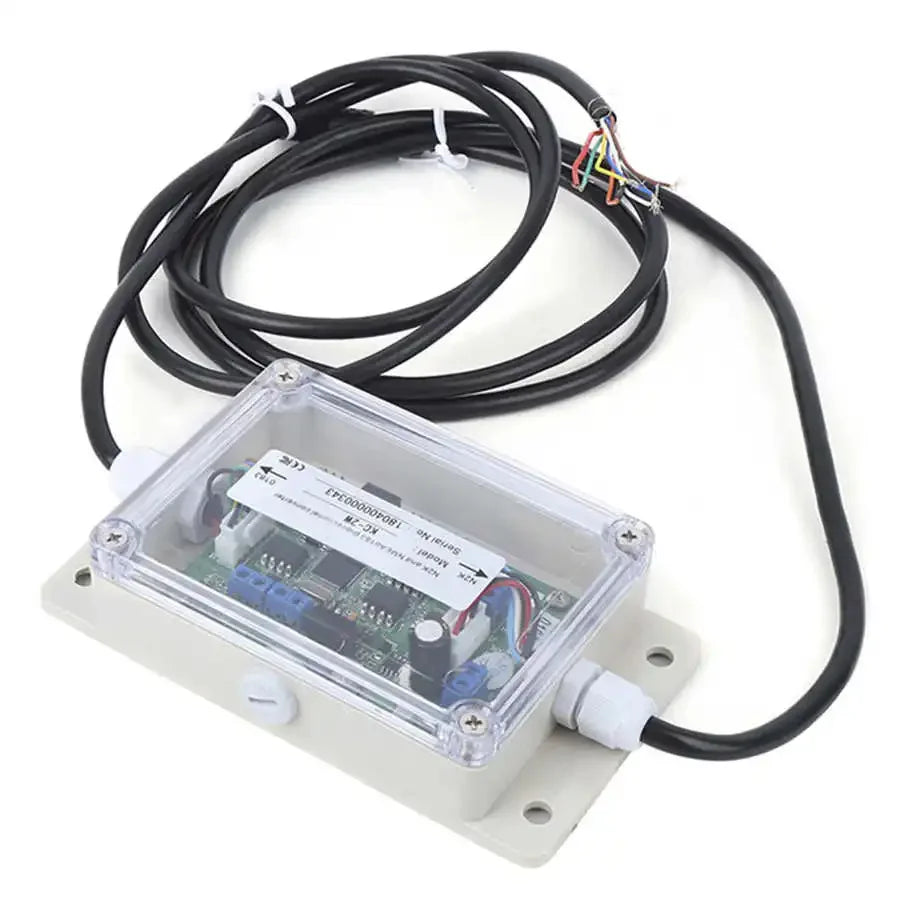

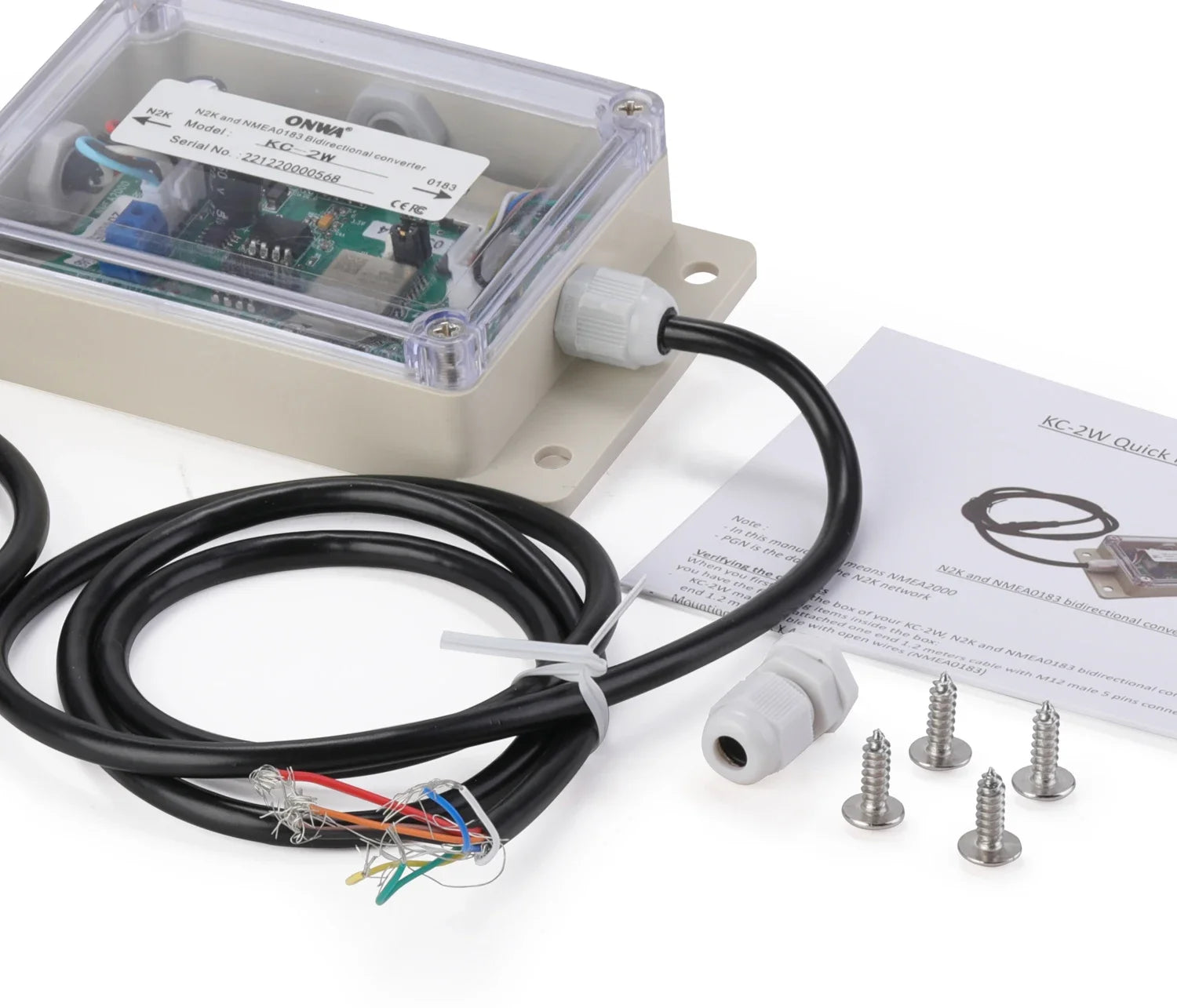

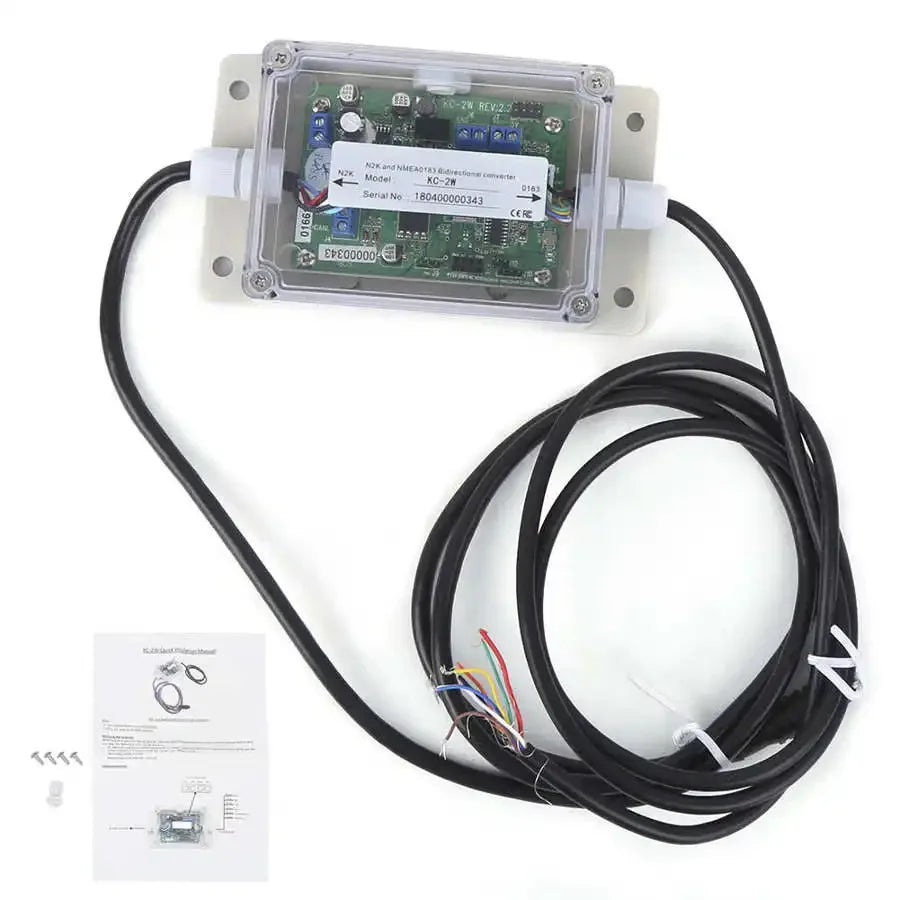

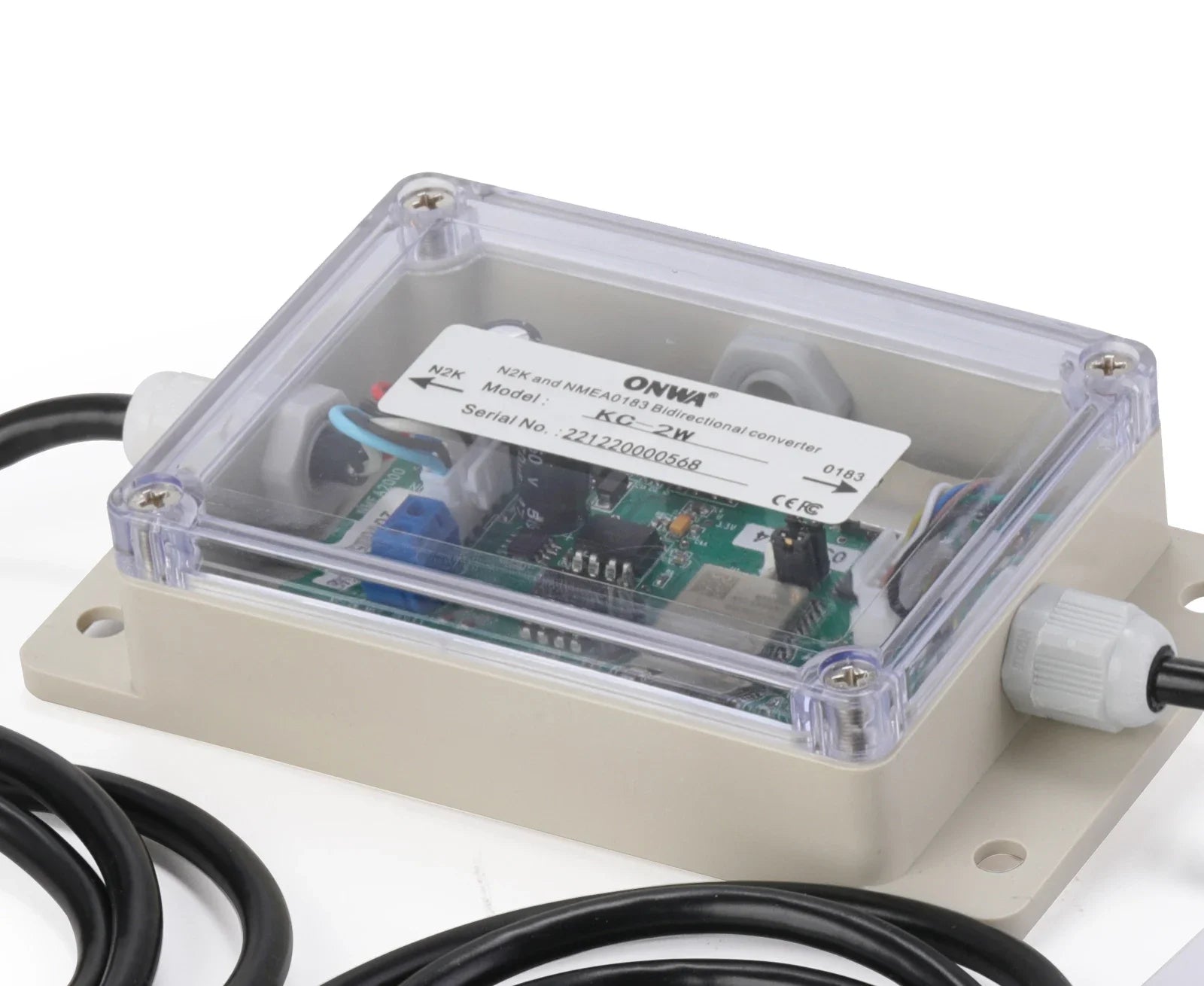

ONWA KC-2W NMEA2000 And NMEA0183 Bidirection Converter NMEA0183 to N2K WIFI module NMEA 0183 / ModBus TCP Slave Converter

ONWA KC-2W NMEA2000 And NMEA0183 Bidirection Converter NMEA0183 to N2K WIFI module NMEA 0183 / ModBus TCP Slave Converter

$438.08 USD
$2,628.48 USD $438.08 USD
Sale Sold out
Shipping calculated at checkout.
Default Title

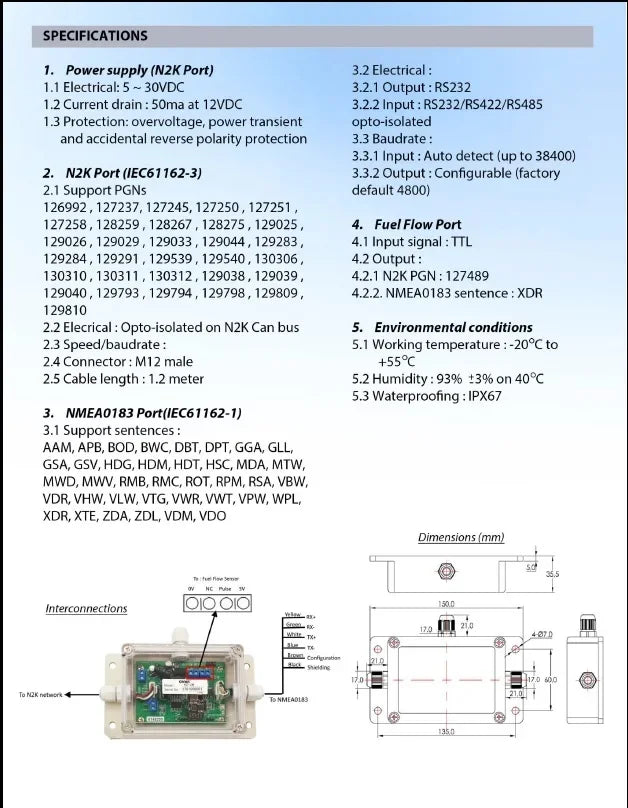

SPECIFICATIONS

Brand Name: ONWA（电子）

Choice: yes

Model Name: KC-2W

Origin: Mainland China

semi_Choice: yes

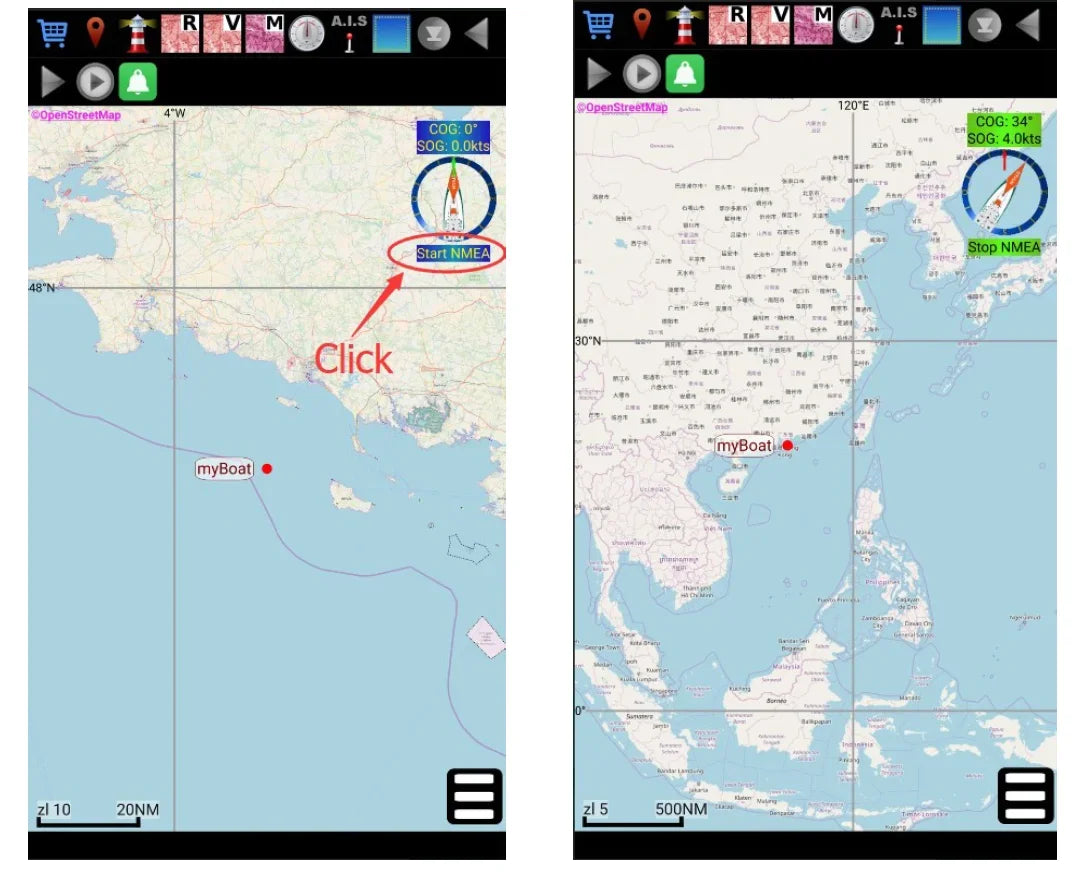

KC2W work with the app Boating (Navionics) on IPAd

The KC-2W has WIFI capability and can connect to the IPAD directly via WIFI



KC2W WIFI can use as a WIFI hotspot or a WIFI terminal.

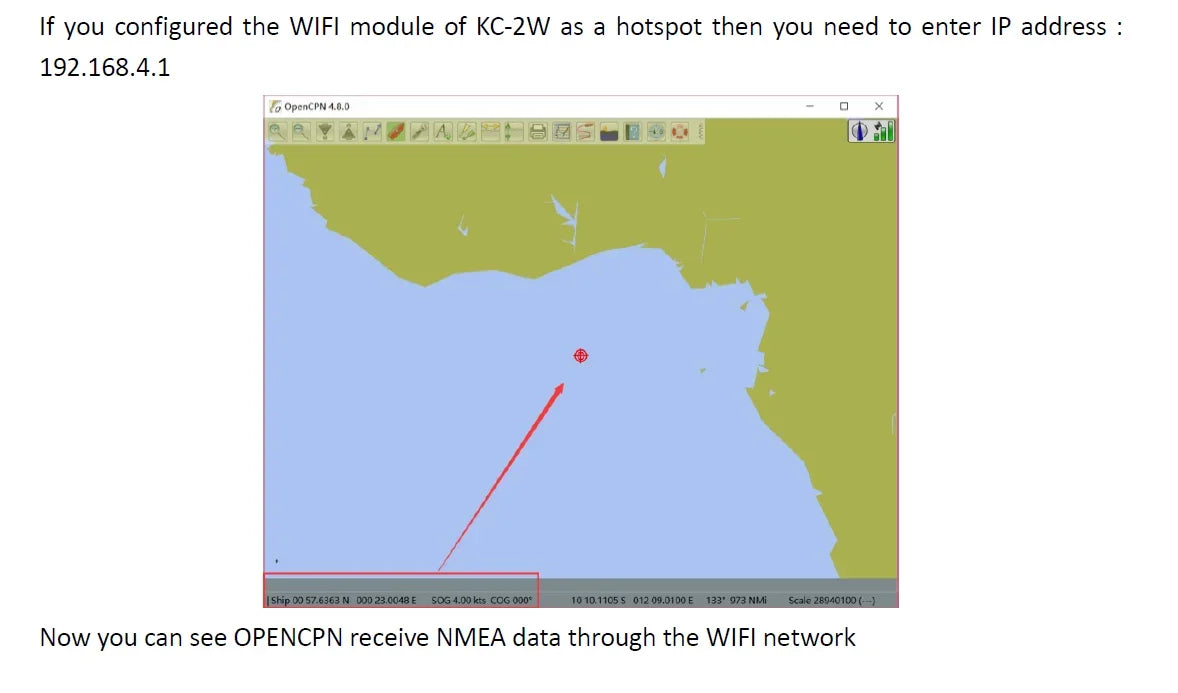

1. As a WIFI hotspot its IP is fixed 192.168.4.1, it is used if there are no WIFI router
onboard your boat.

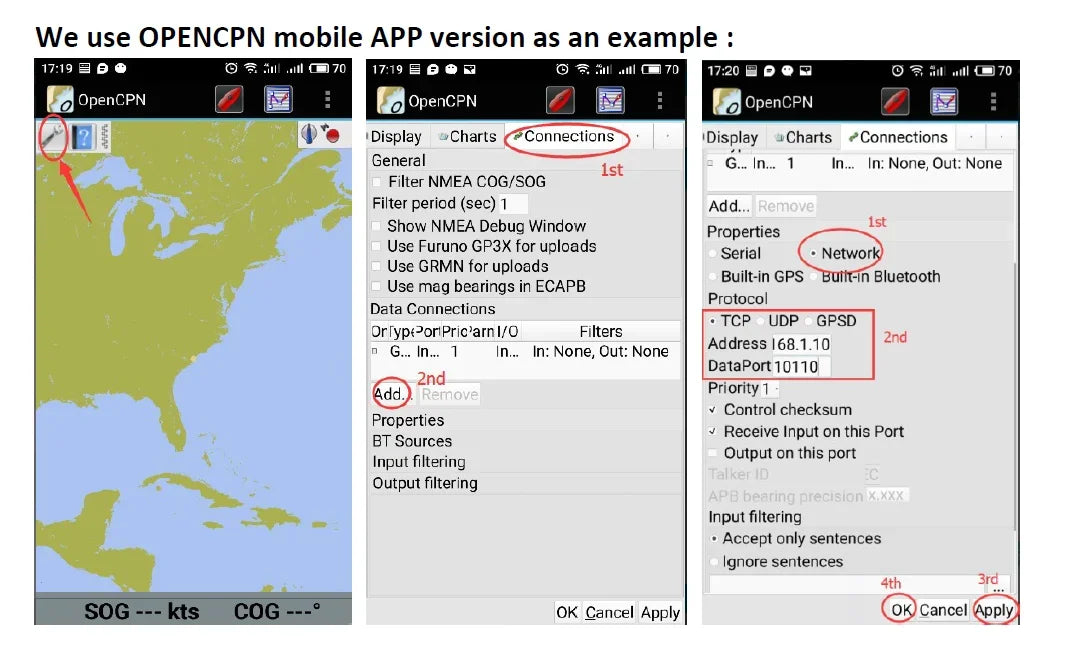

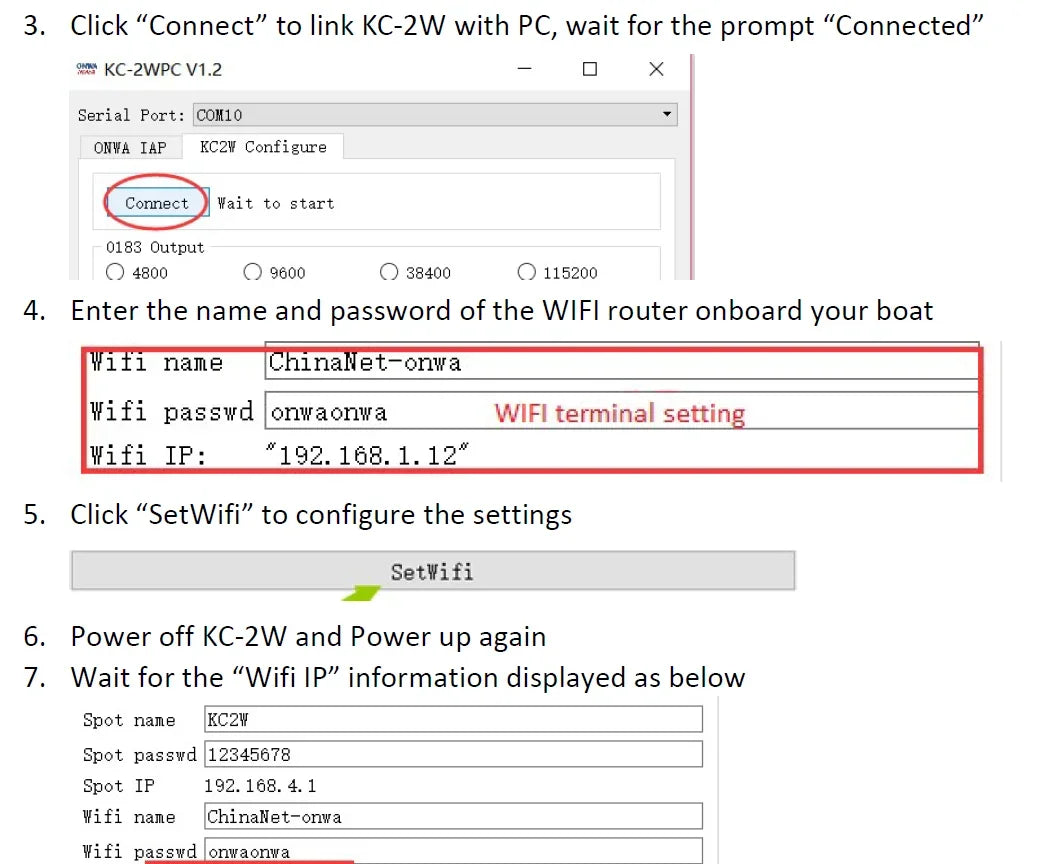

2. As a WIFI terminal, the IP is distributed by the WIFI router. You can check the IP as
shown below. It is used if there are already WIFI router onboard your boat to
share the data.

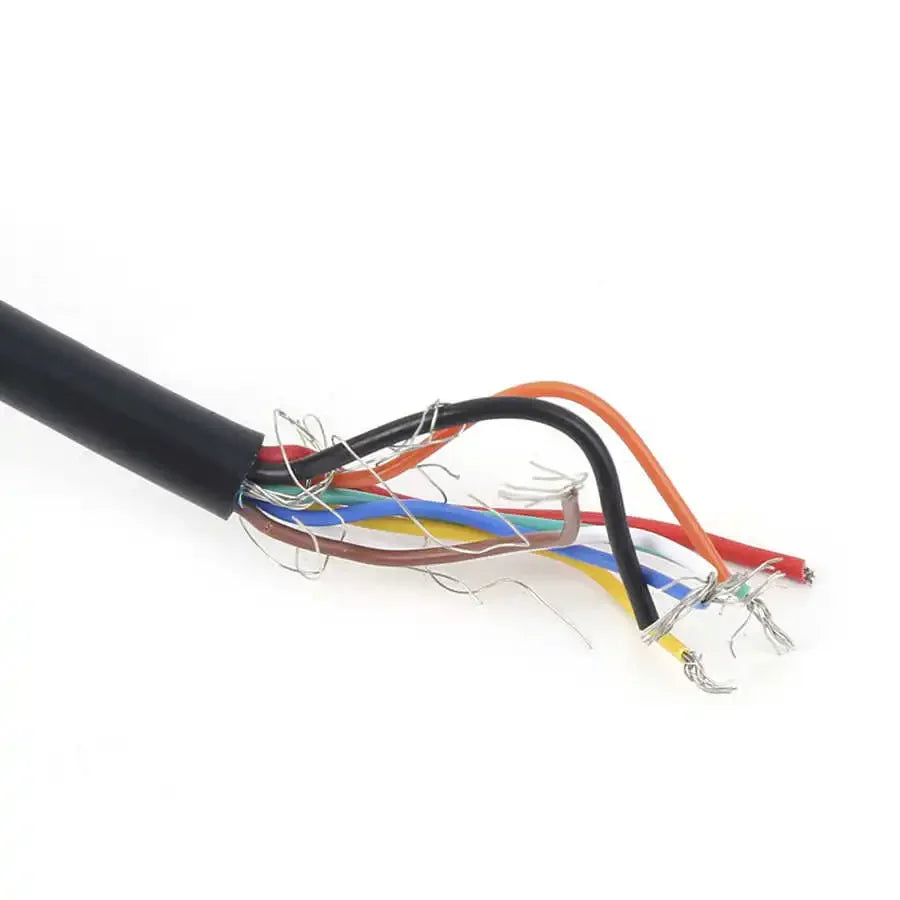

Connect KC-2W to PC
KC-2W side PC side (DB9)
RX+ (Yellow) --------------------------- Pin 3
Configuration (Brown) --------------- Pin 2
RX- and TX- (Blue and Green) ------ Pin 5

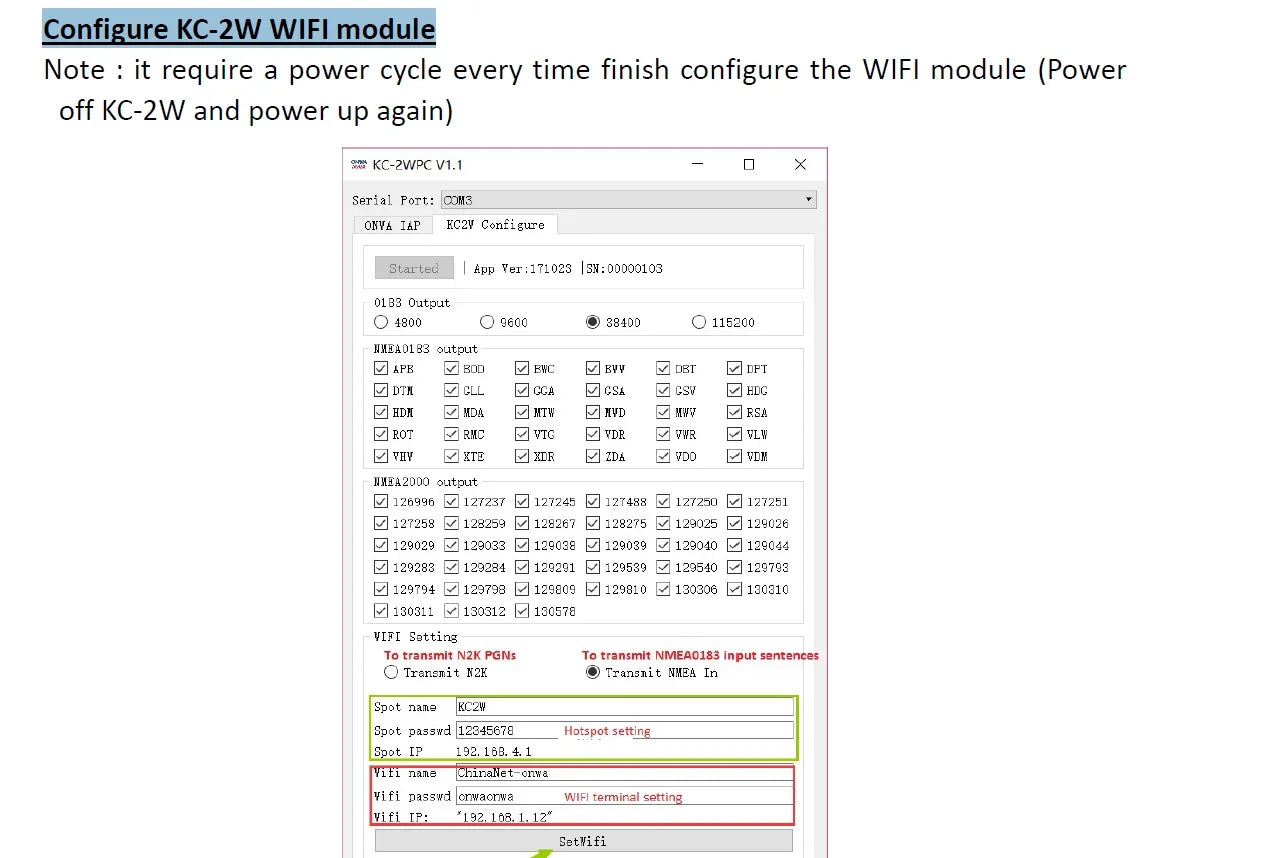

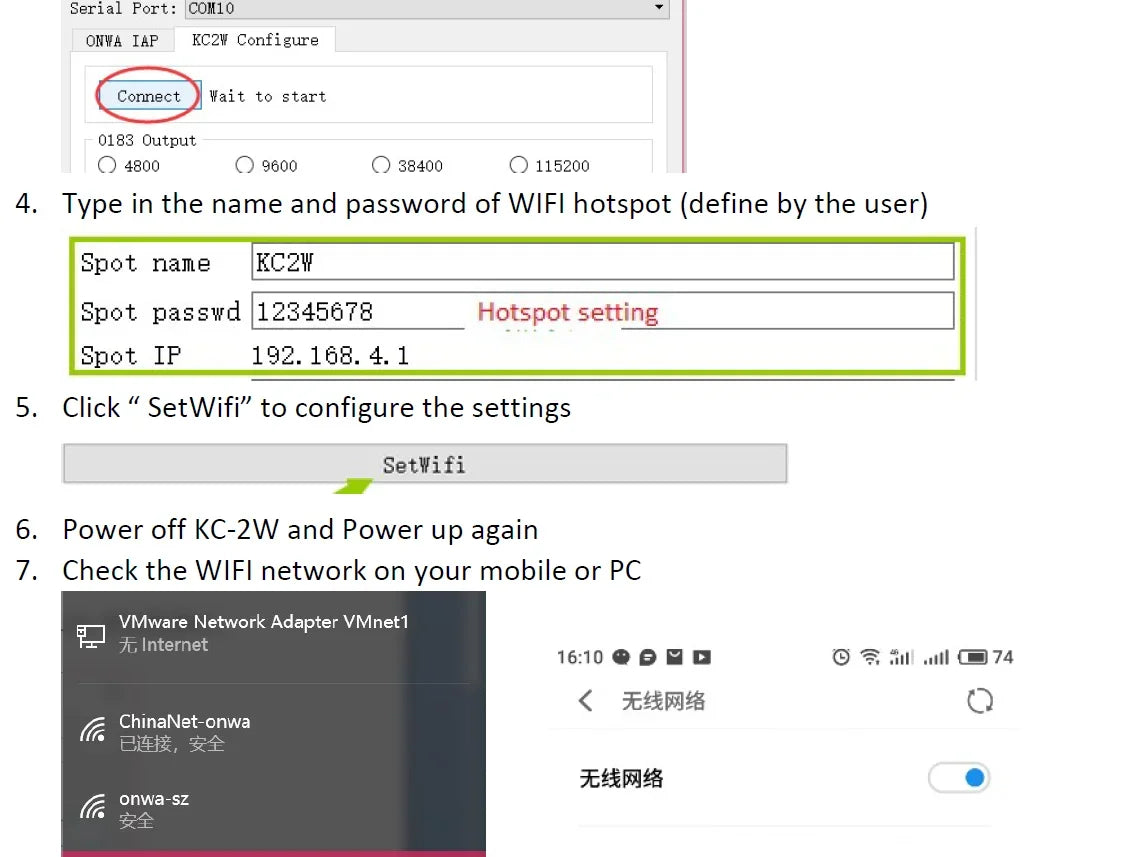

Configure KC-2W WIFI module
Note : it require a power cycle every time finish configure the WIFI module (Power
off KC-2W and power up again)
1.

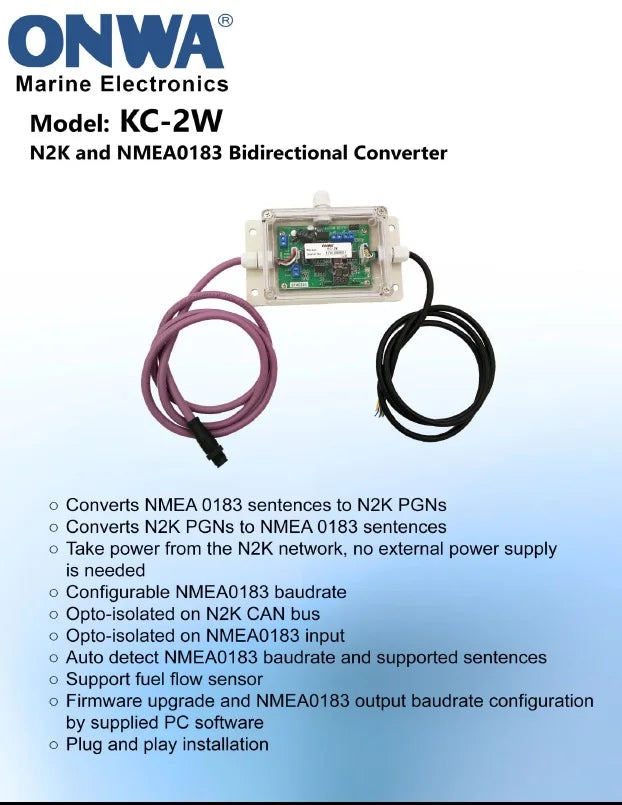

NMEA2000 and NMEA0183 Bidirectional Converter .

N2K to NMEA0183 ,

NMEA0183 to N2K converter .


NMEA2000  Orgnational Approval product .
