Features:

• 100% brand new and high quality

• No diaphram, free flow

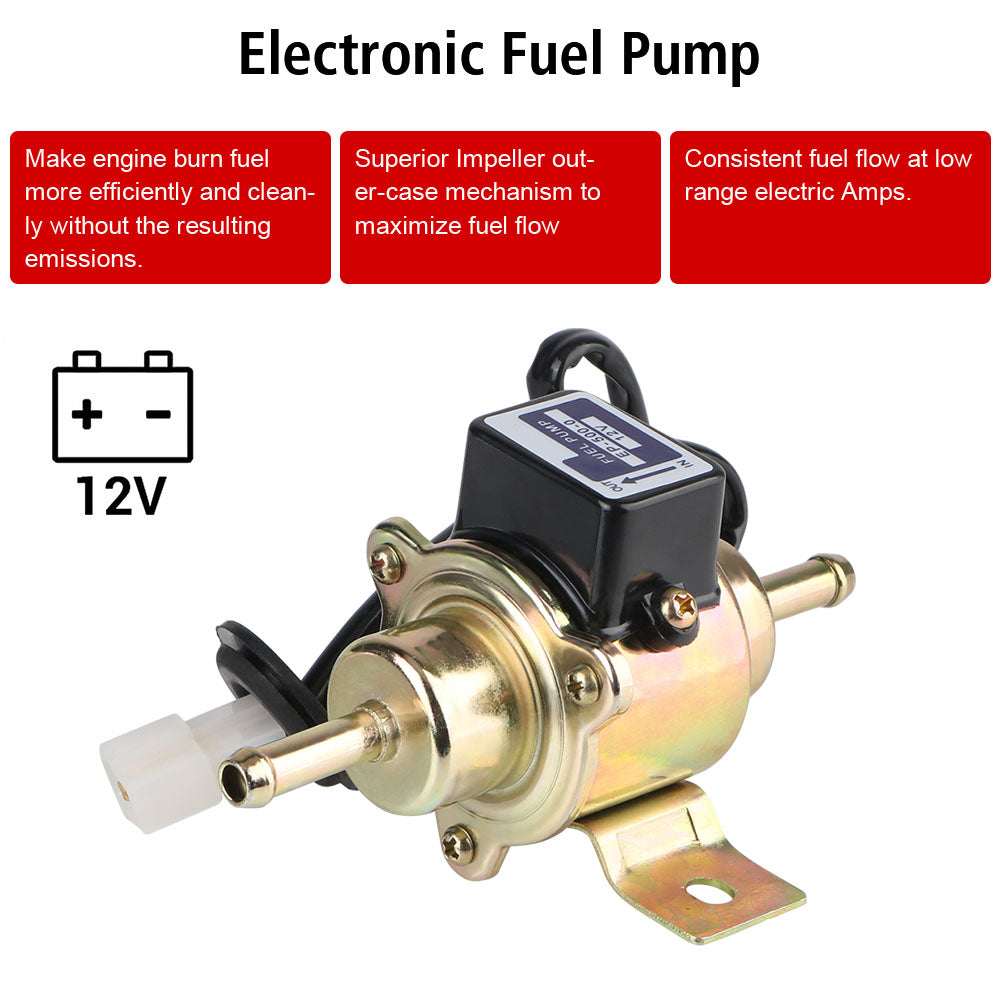

• The solenoid pump uses a piston actuated by an electromagnetic coil to generate fuel pressure and flow.
• By using only short pulses of electricity, the solenoid pump is very energy-efficient.
• It is also long-lasting, with no internal rubber parts or bellows to wear out.

Specifications:

• Pressure:3-5PSI
• Current:1.0-1.3A
• Output Pressure:0.005Pa
• Voltage:12V
• Flow:0-30 GPH / 75 - 110 LPH

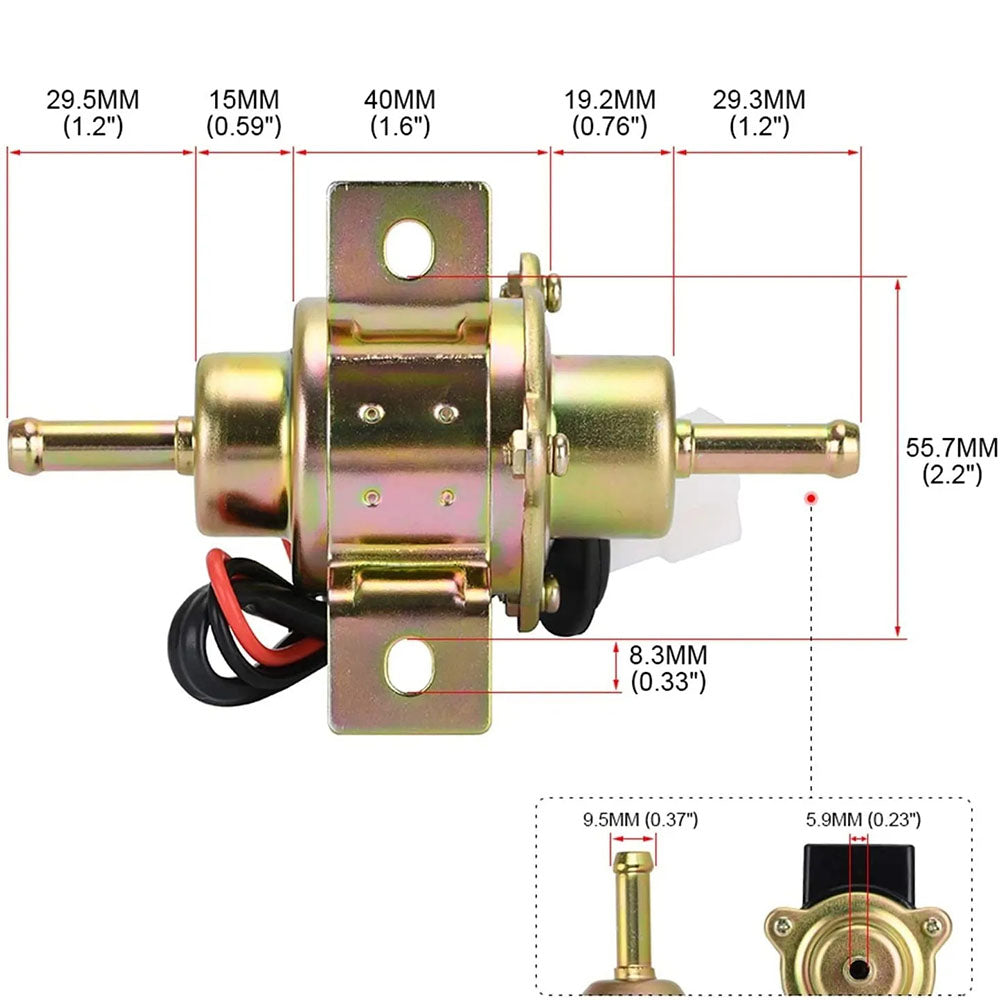

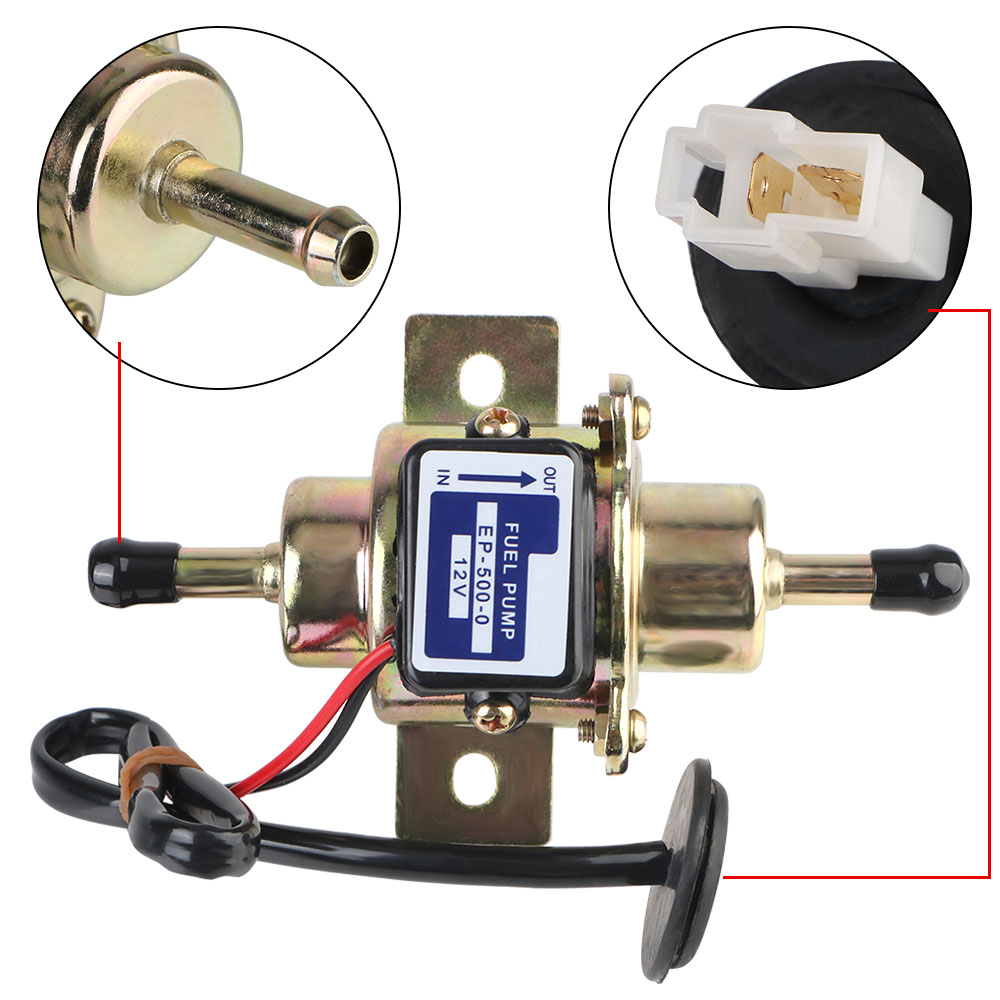

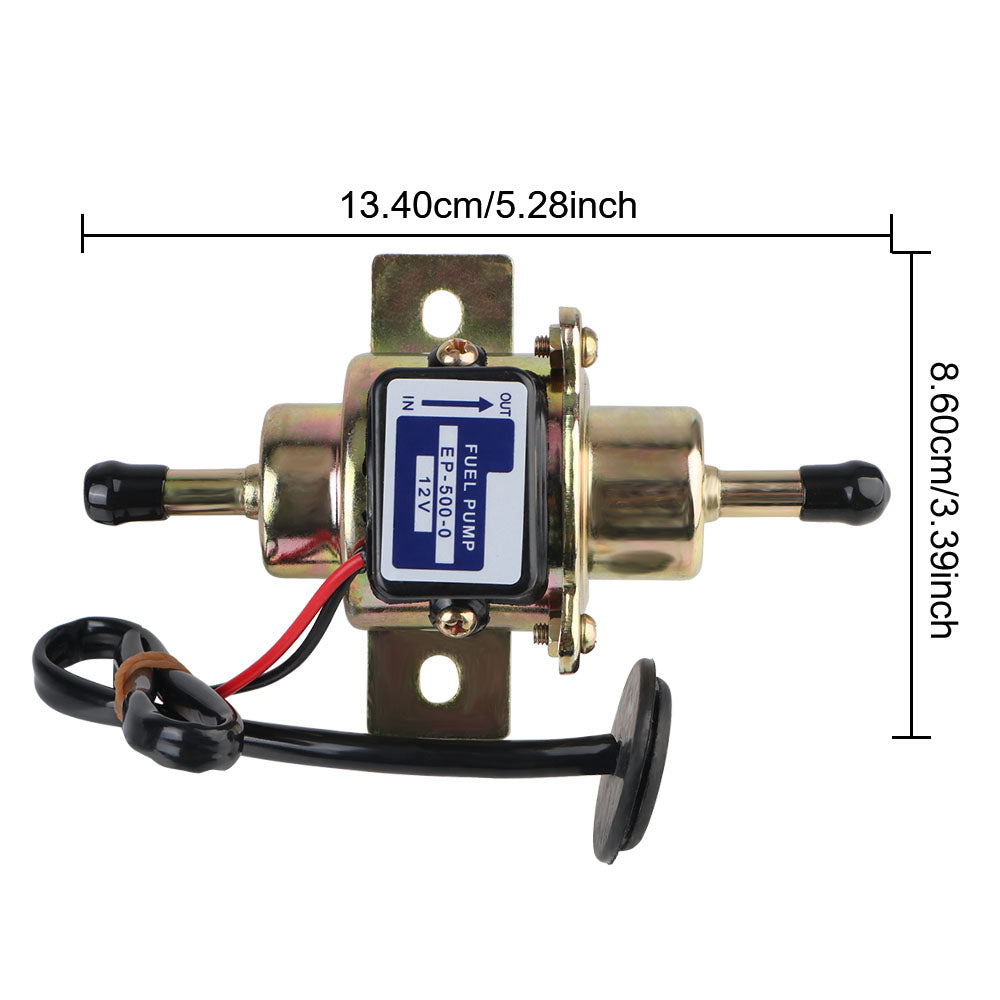

• Fitting Size:1/4" tubing
• Made of high Brass and metal

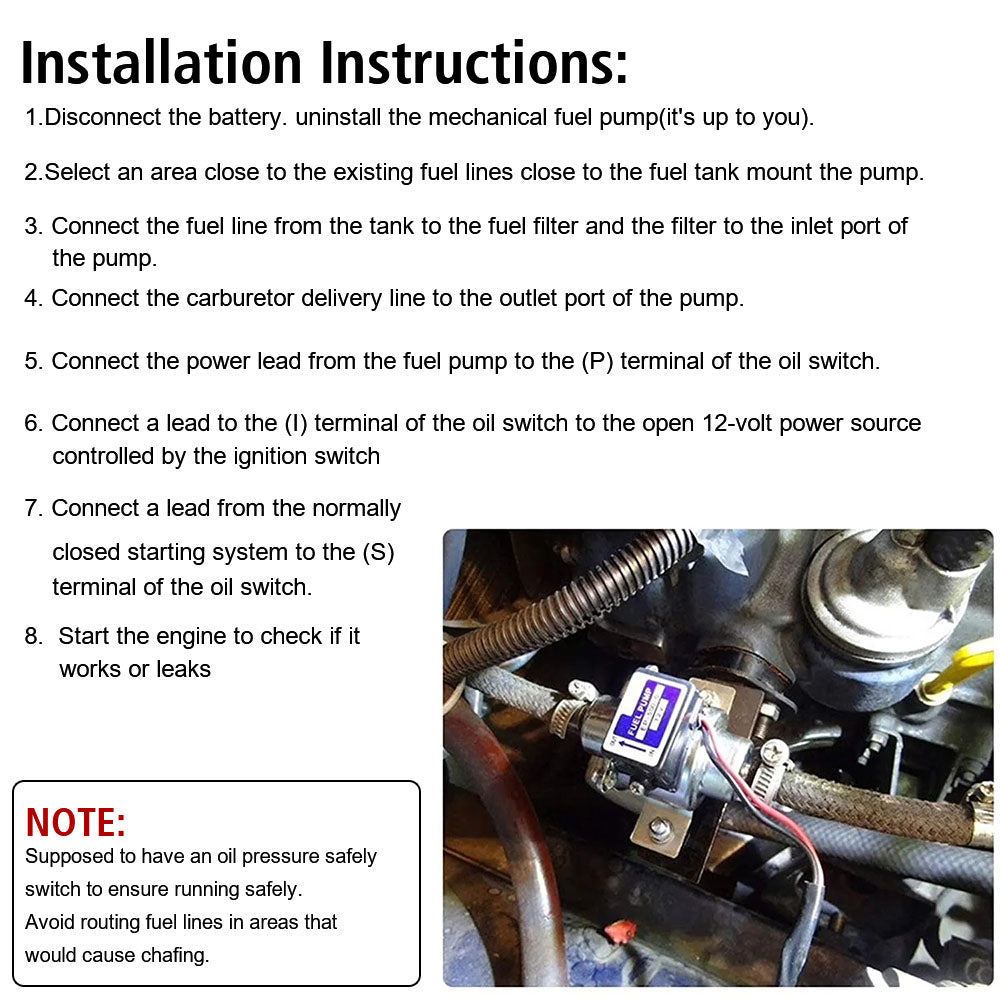

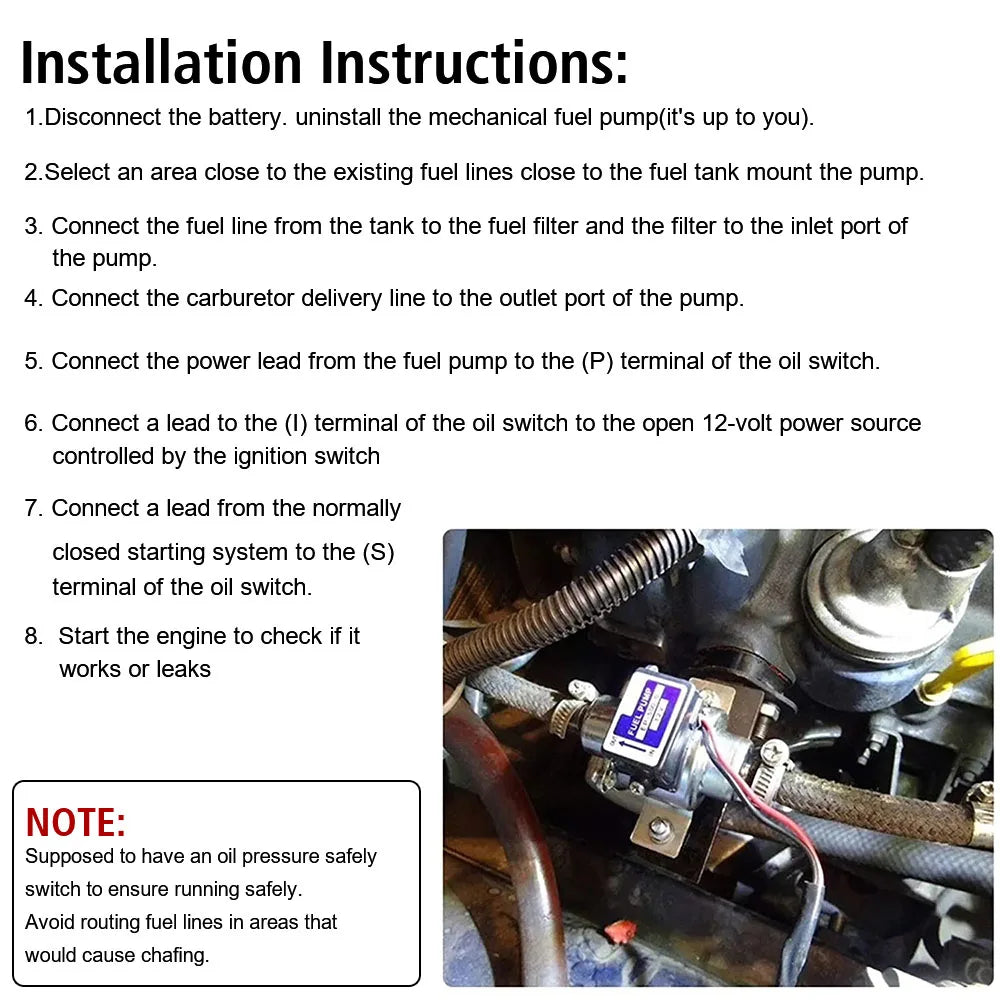

Installation Instructions:

• 1.Disconnect the battery. uninstall the mechanical fuel pump(it's up to you).

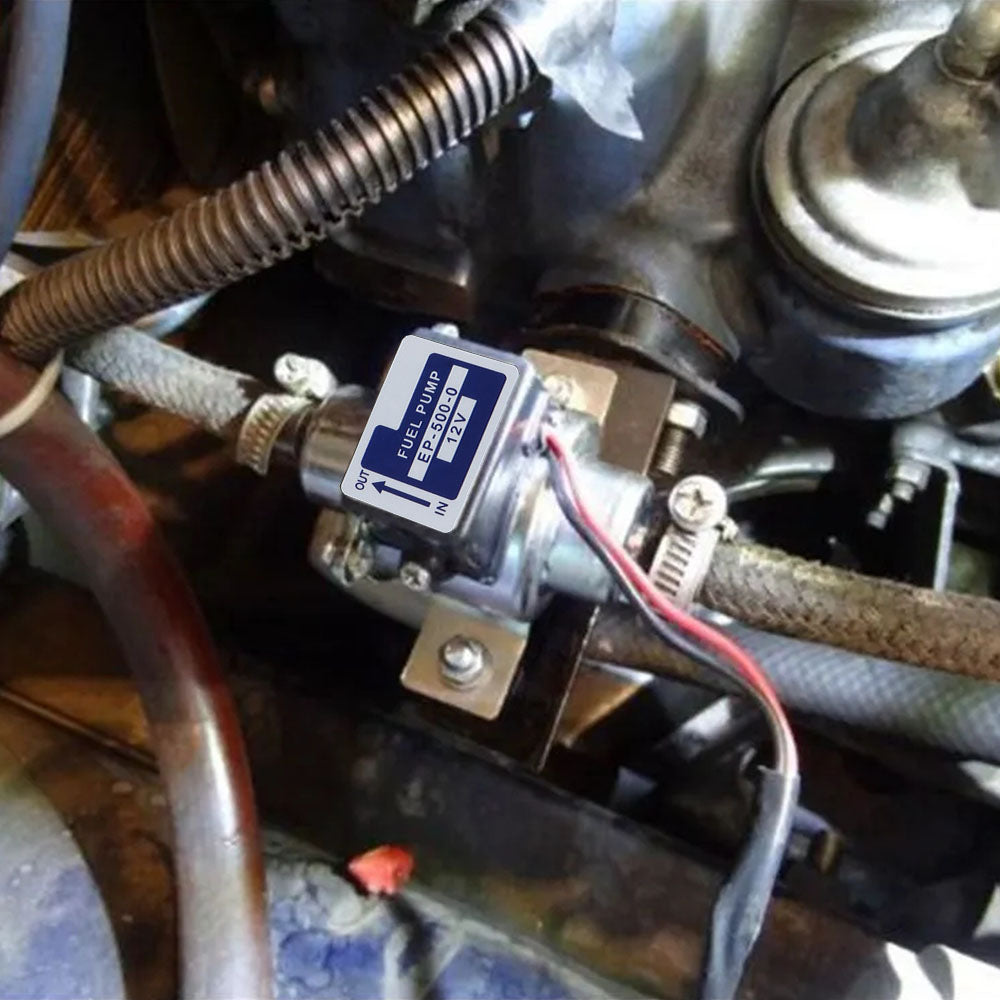

• 2.Select an area close to the existing fuel lines close to the fuel tank mount the pump.
• 3. Connect the fuel line from the tank to the fuel filter and the filter to the inlet port of the pump.
• 4. Connect the carburetor delivery line to the outlet port of the pump.
• 5. Connect the power lead from the fuel pump to the (P) terminal of the oil switch.
• 6. Connect a lead to the (I) terminal of the oil switch to the open 12-volt power source controlled by the ignition switch
• 7. Connect a lead from the normally closed starting system to the (S) terminal of the oil switch.
• 8.  Start the engine to check if it works or leaks

Package Included:

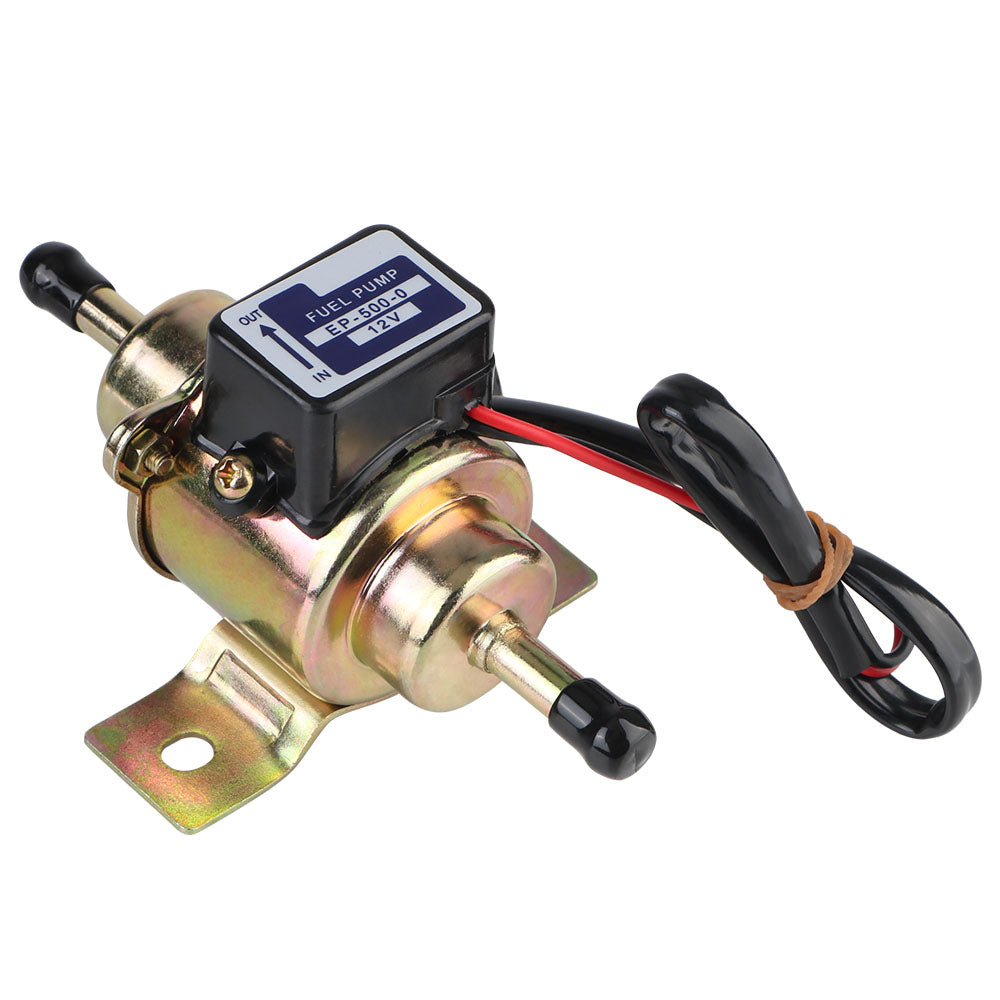

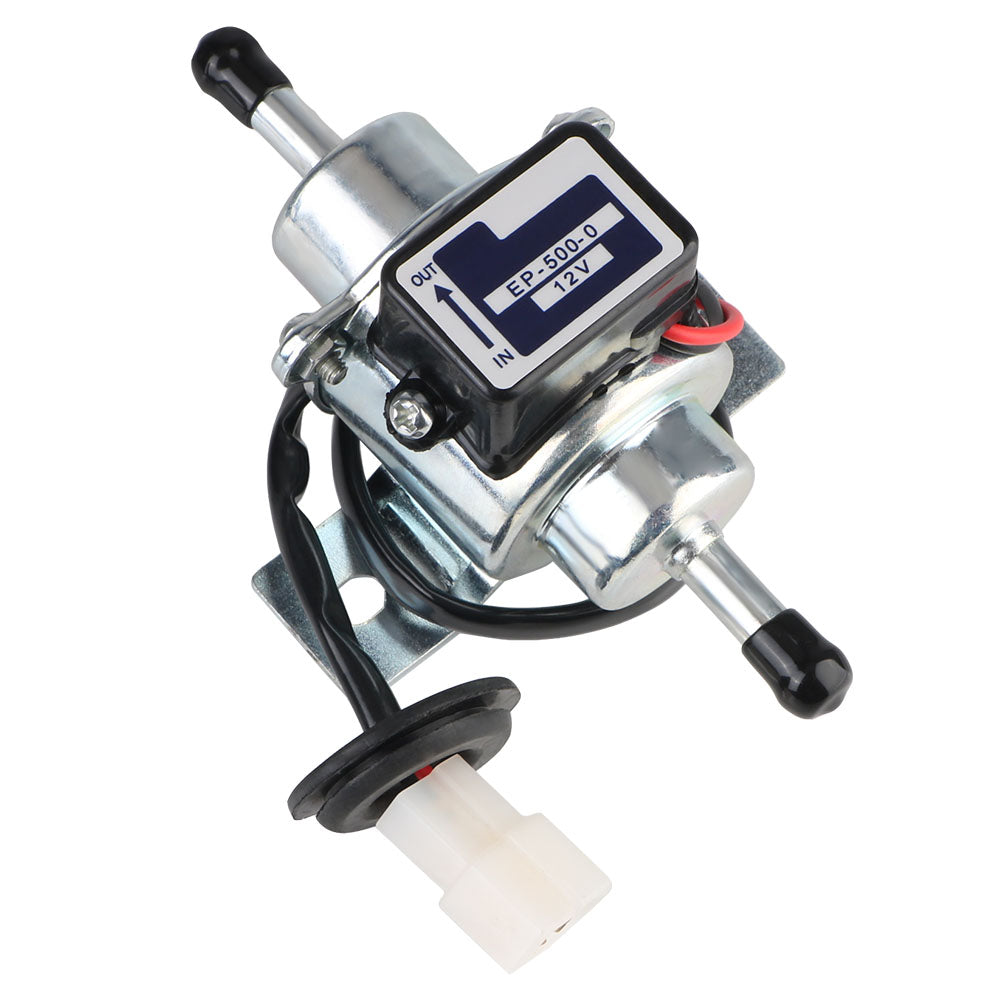

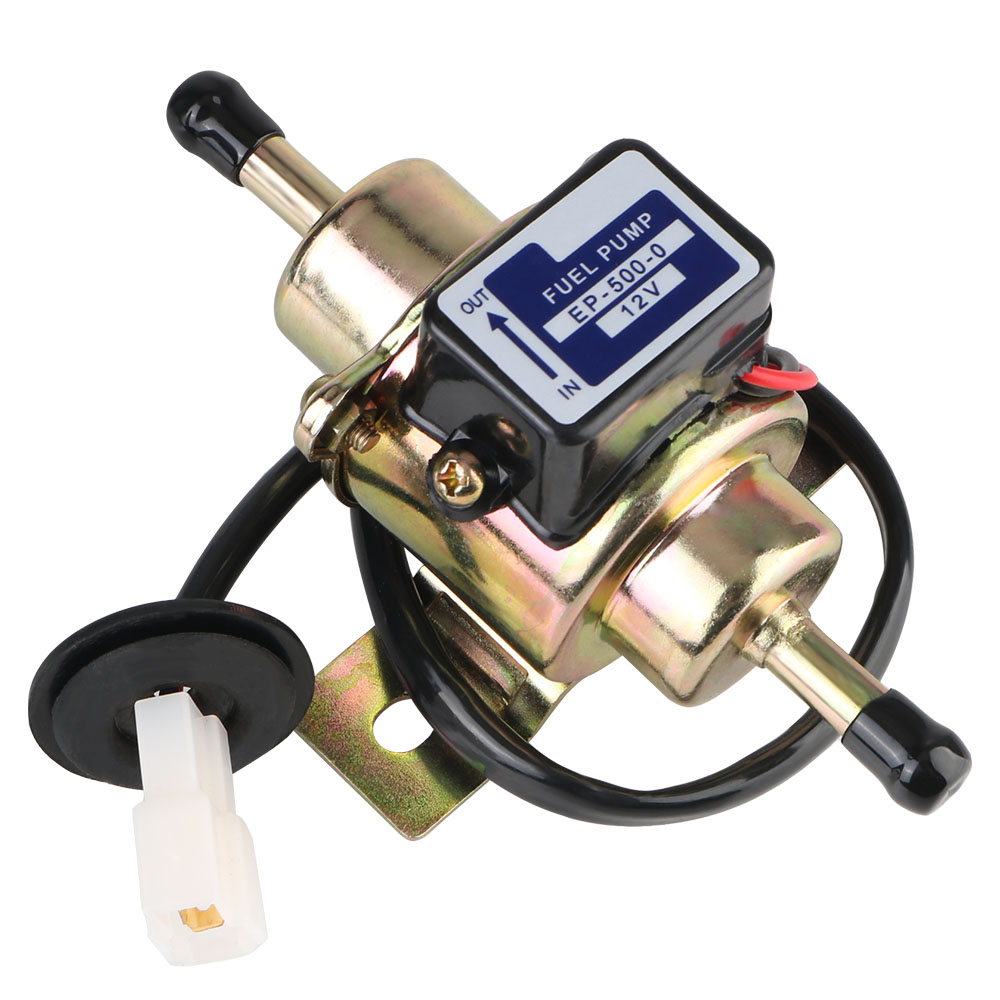

• 1 Car Oil Fuel Pump
