SPECIFICATIONS

Brand Name: MINCO HEAT

Certification: CE

Choice: yes

Does it include a Battery?: No

Does it include wireless functionality?: No

Floor Heating Part Type: Floor Heating Thermostats

High-concerned chemical: none

Load current: MAX 25A (4500W)

Material: plastic

Mounting Box: 86*86mm type square mounting box

Origin: Mainland China

Overheat protection temperature: factory setting is 50℃(adjustable)

Power supply voltage: 220V±20% 50HZ

Size: 85*85*41 (back size: 61*47*25

Temperature correction value: ± 9 ℃

Temperature measurement accuracy: ±1℃

Temperature measurement range: 5~85℃

Type: Floor Heating Parts

Upper limit of temperature setting: 85℃

Voltage: 220 V

semi_Choice: yes

Specifications:

1. Temperature measurement range: 5~85℃

2. Temperature measurement accuracy: ±1℃

3. Upper limit of temperature setting: 85℃

4. Load current: MAX 25A (4500W)

5. Temperature correction value: ± 9 ℃ (the range that can be adjusted up and down when calibrating the temperature)

6. Power supply voltage: 220V±20% 50HZ

7. Overheat protection temperature: factory setting is 50℃ (adjustable)

8. Size: 85*85*41 (back size: 61*47*25)

9. This product is installed in 86*86mm type square mounting box. (Not suitable for standard EU round mounting box.)

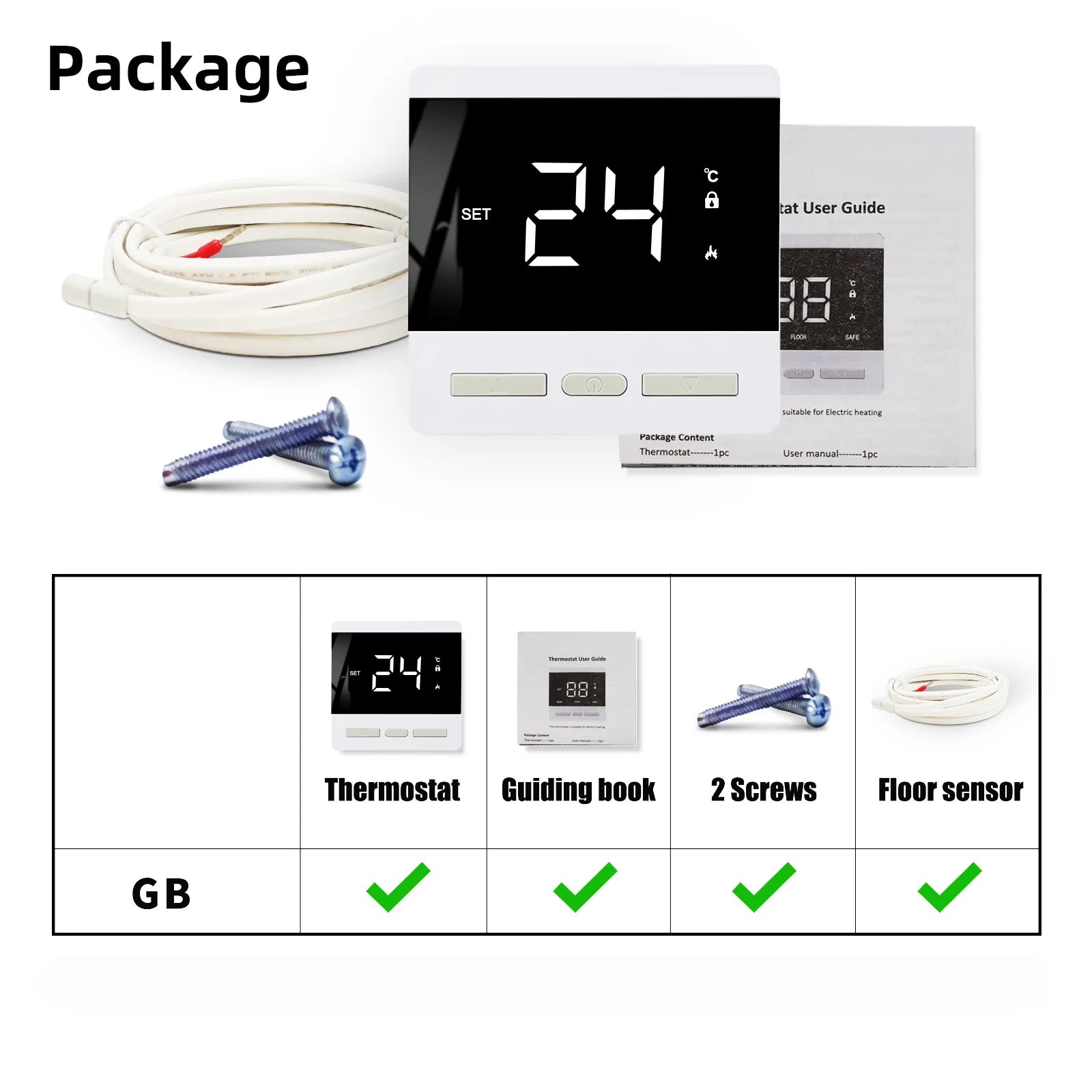

Package Including:

Thermostat-------1pc

Screw-------2pc

User manual-------1pc

3m External sensor-------1pc

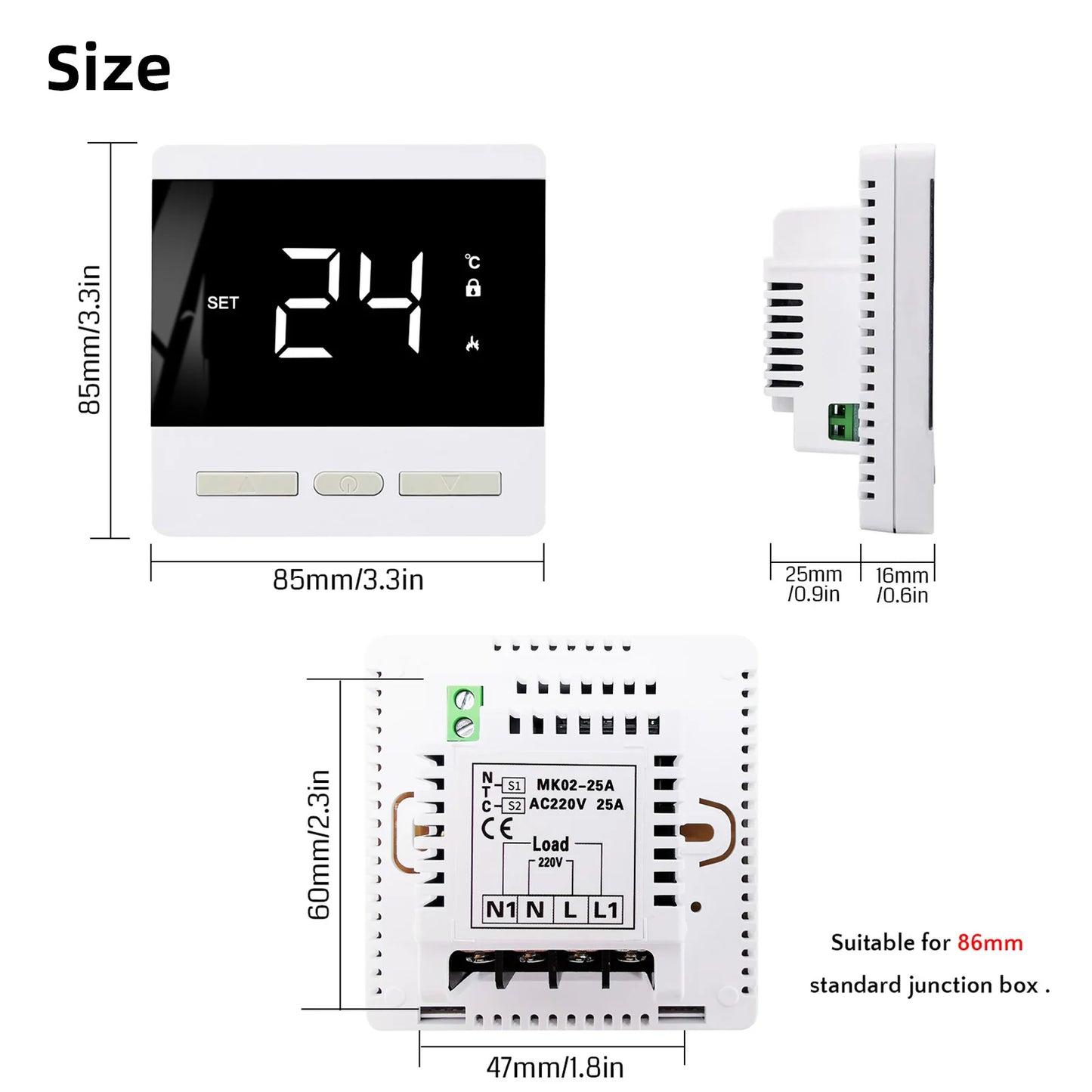

Size:

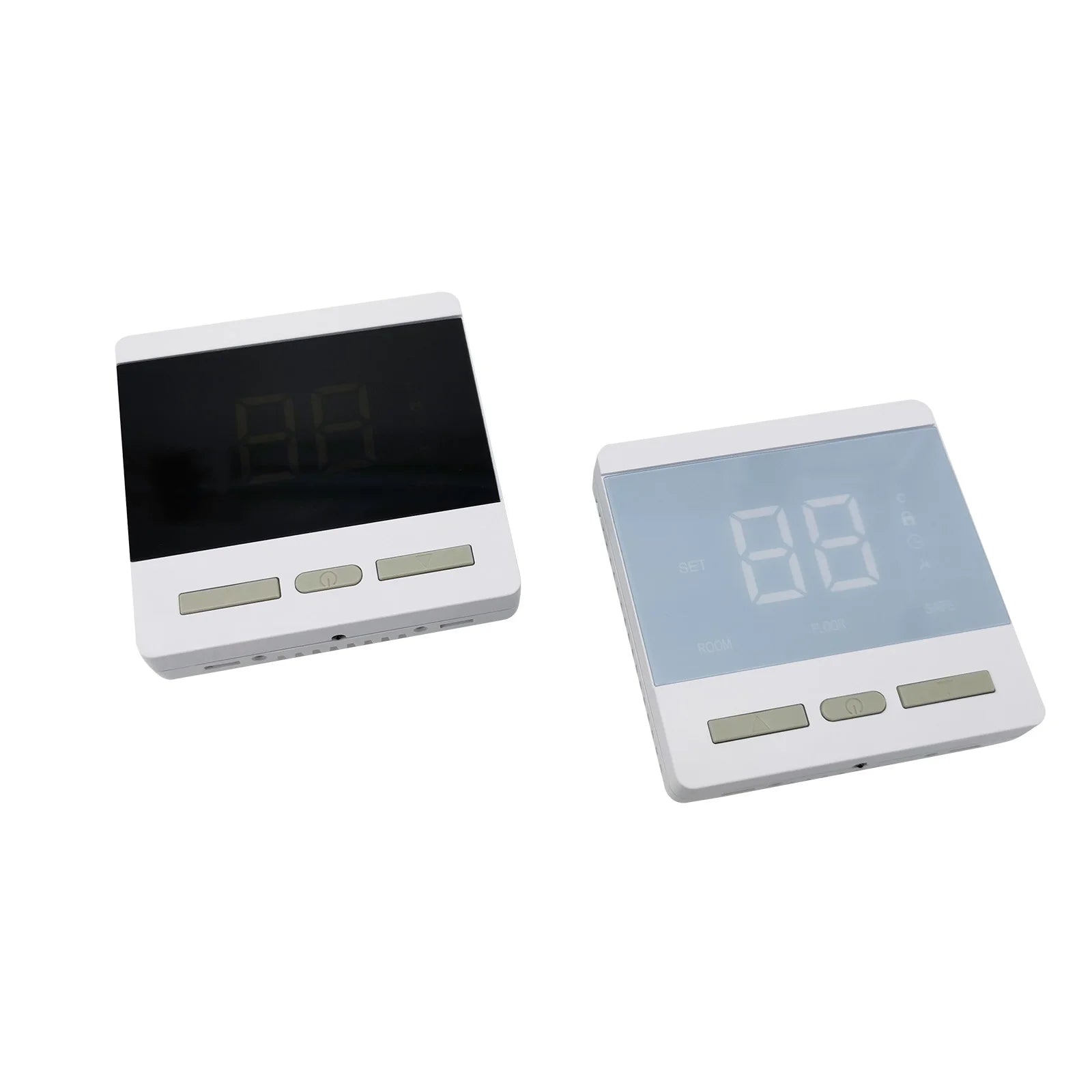

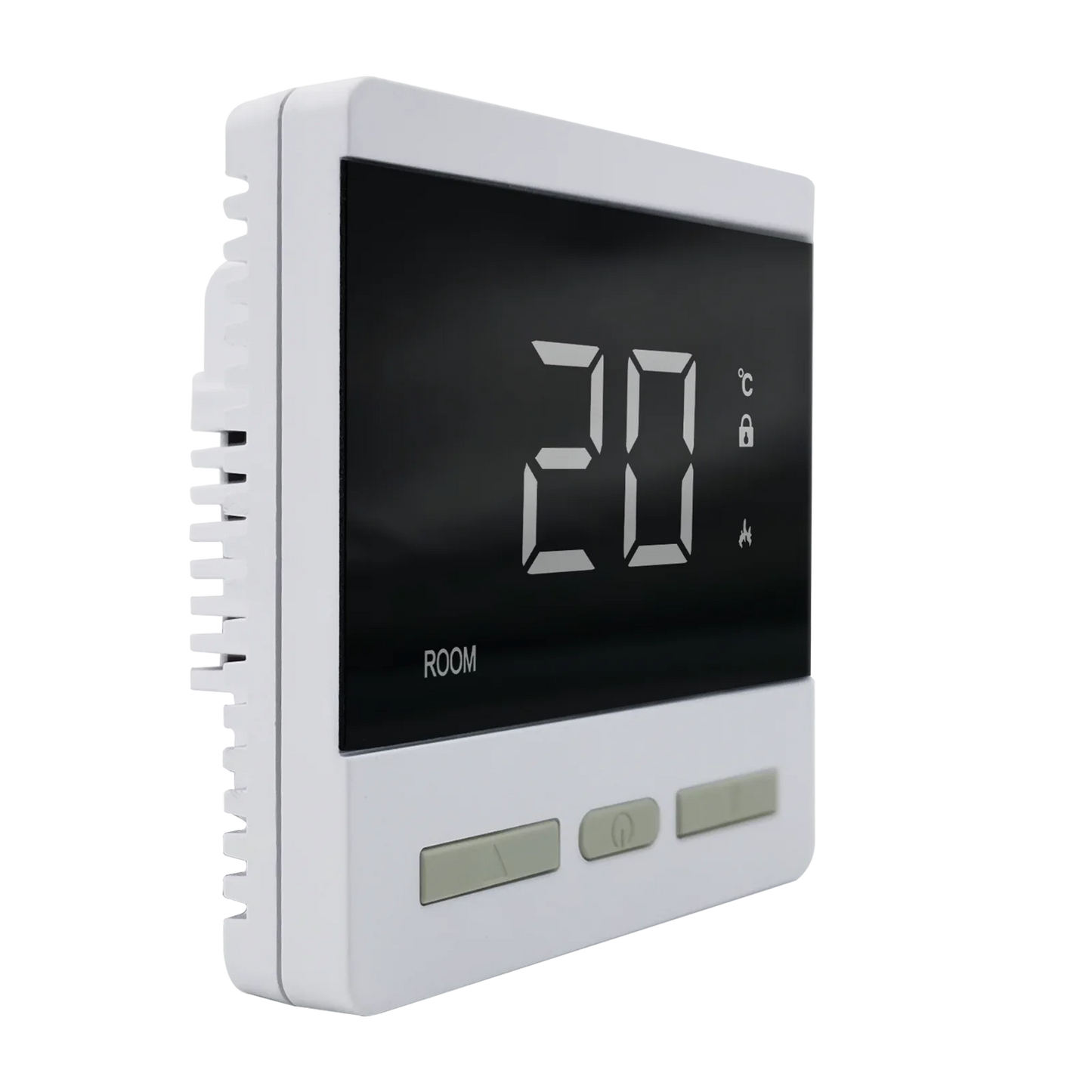

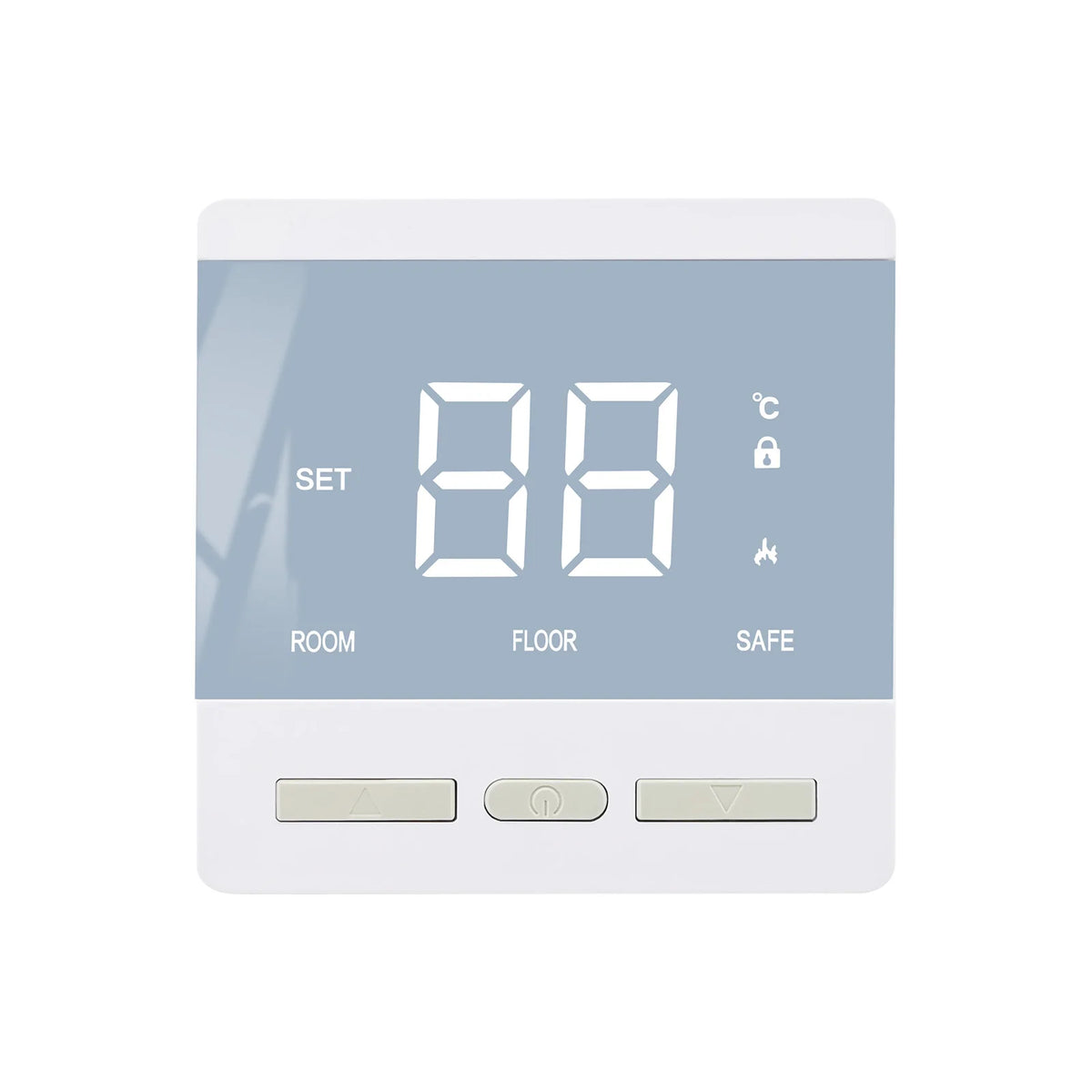

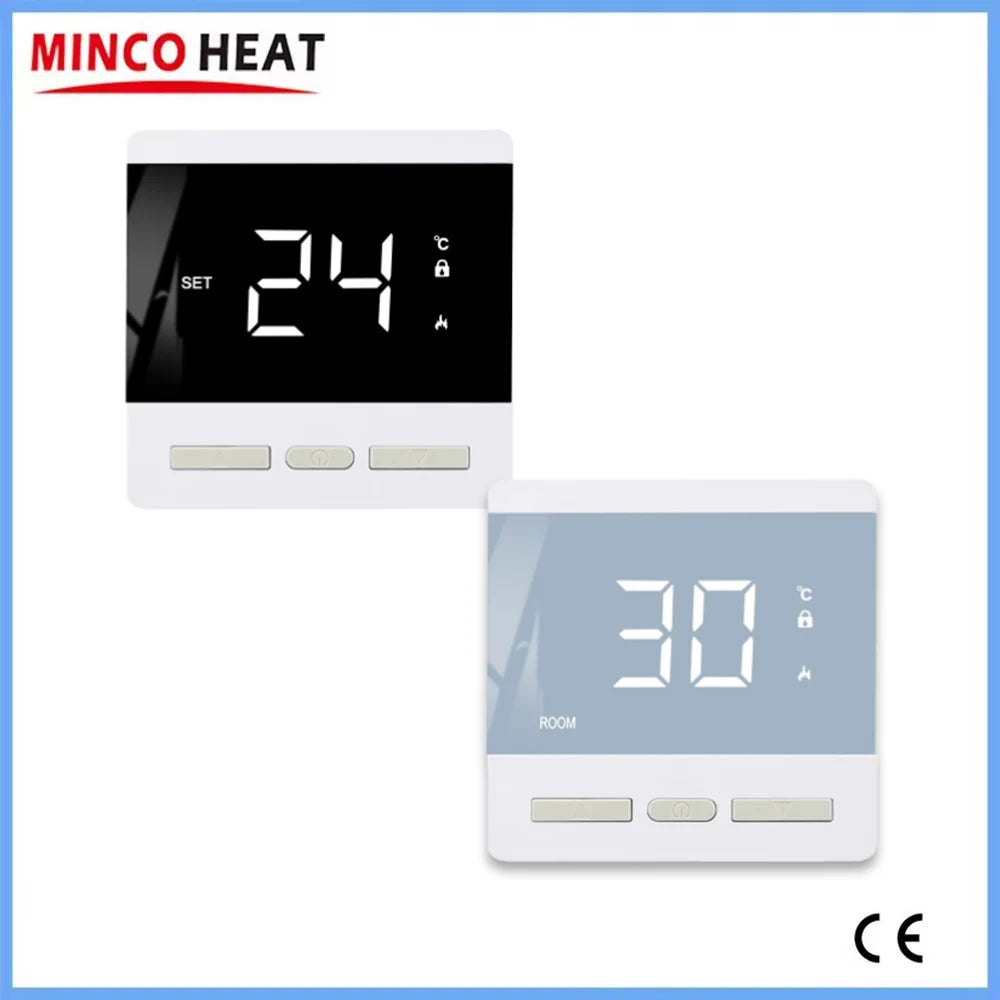

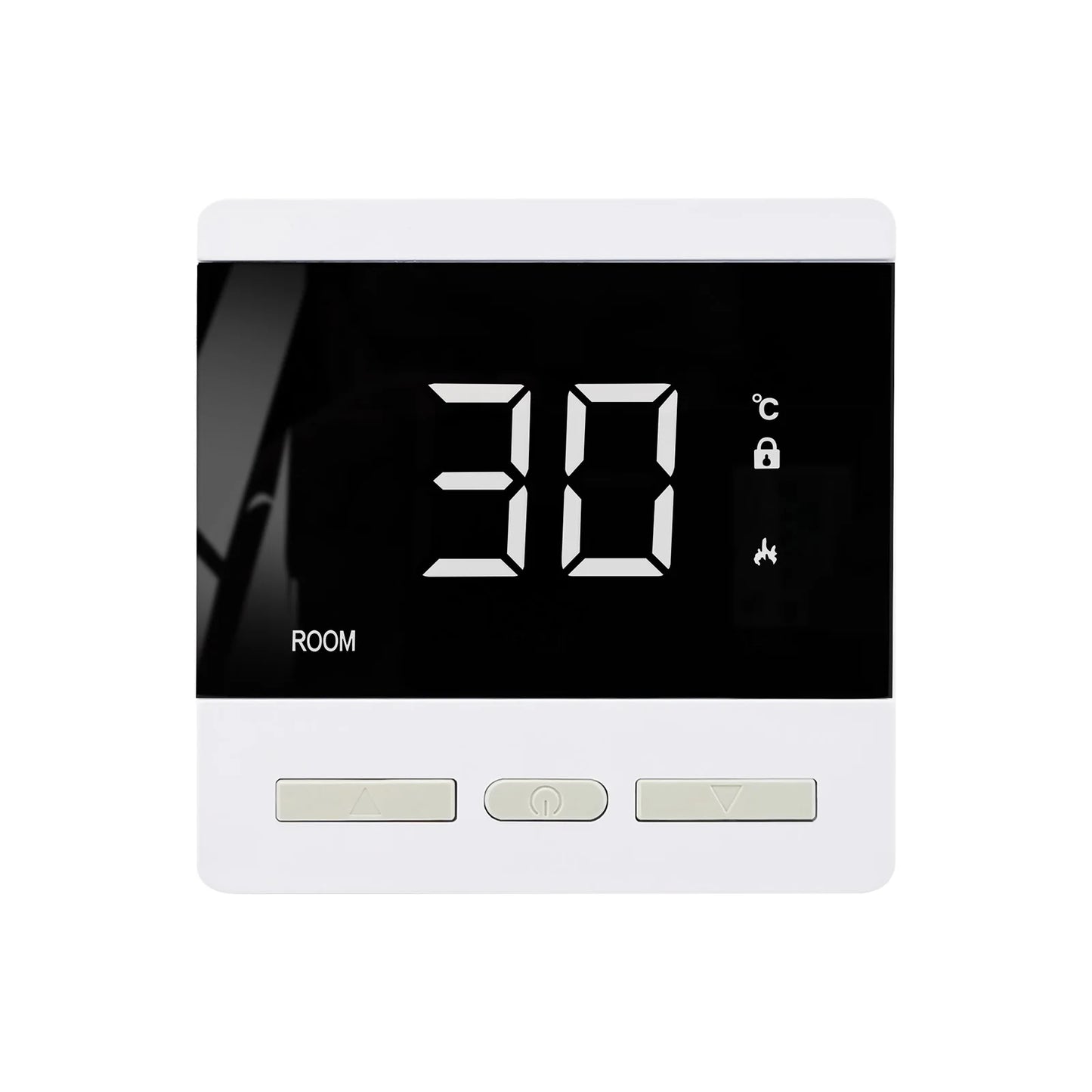

Photos:

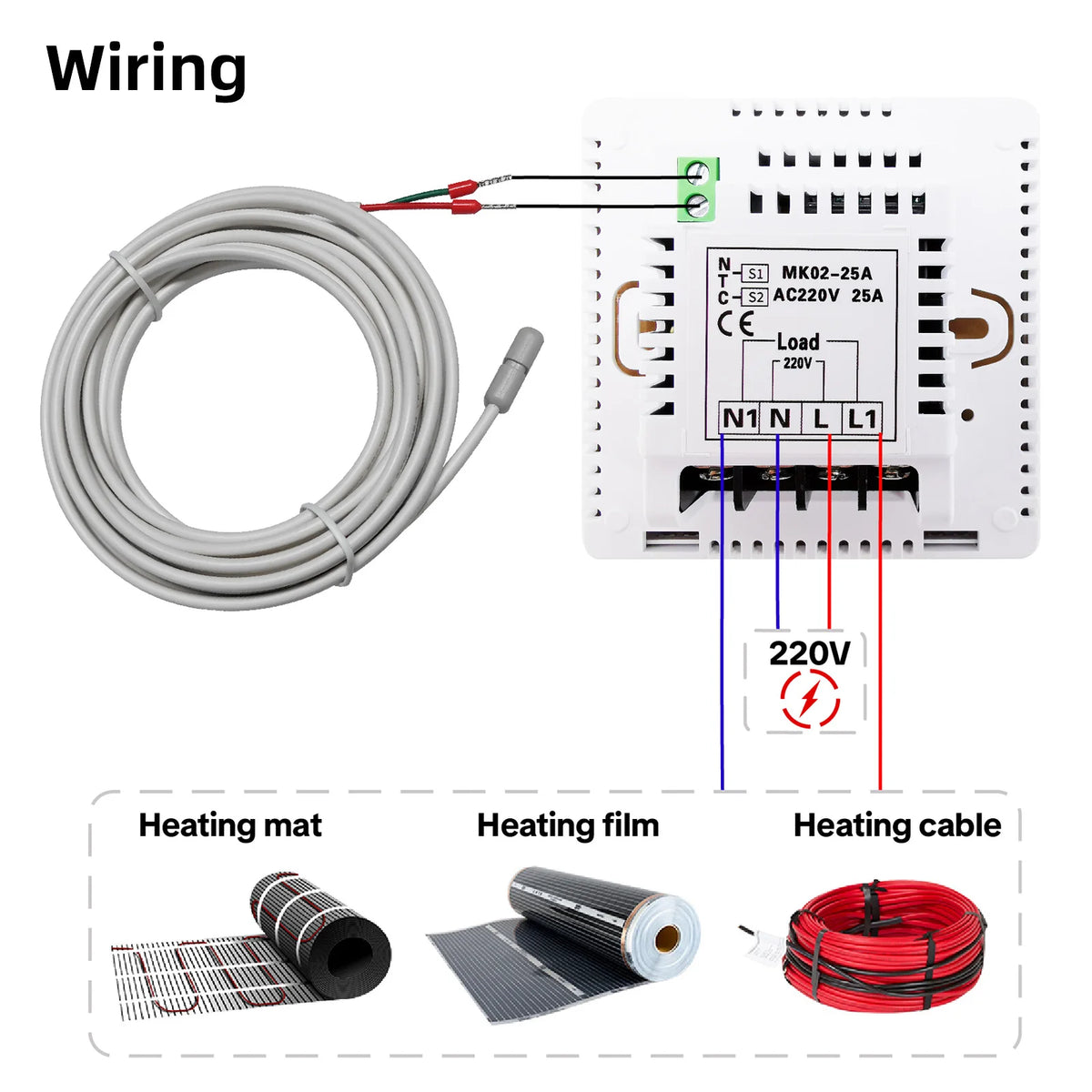

Wiring:

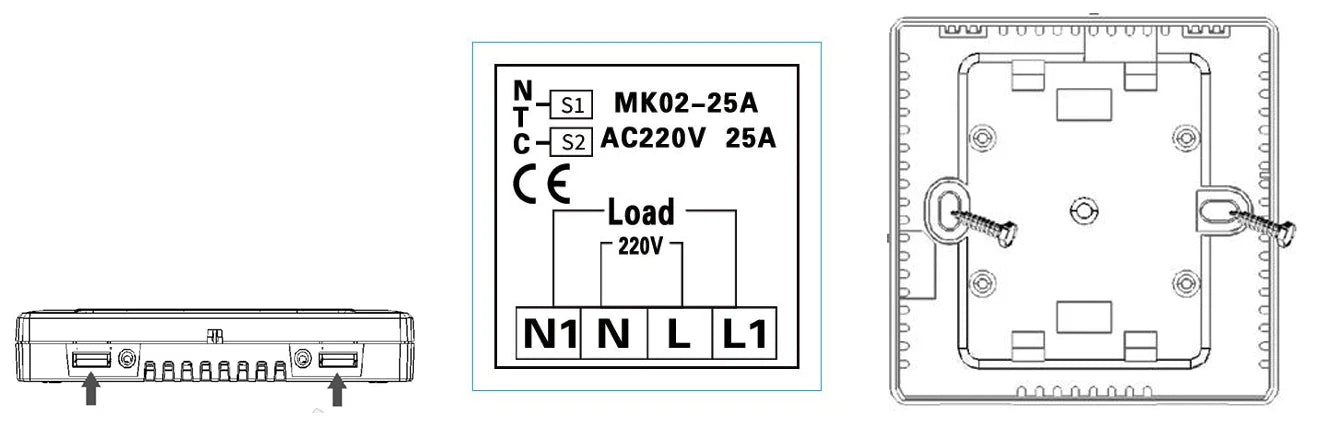

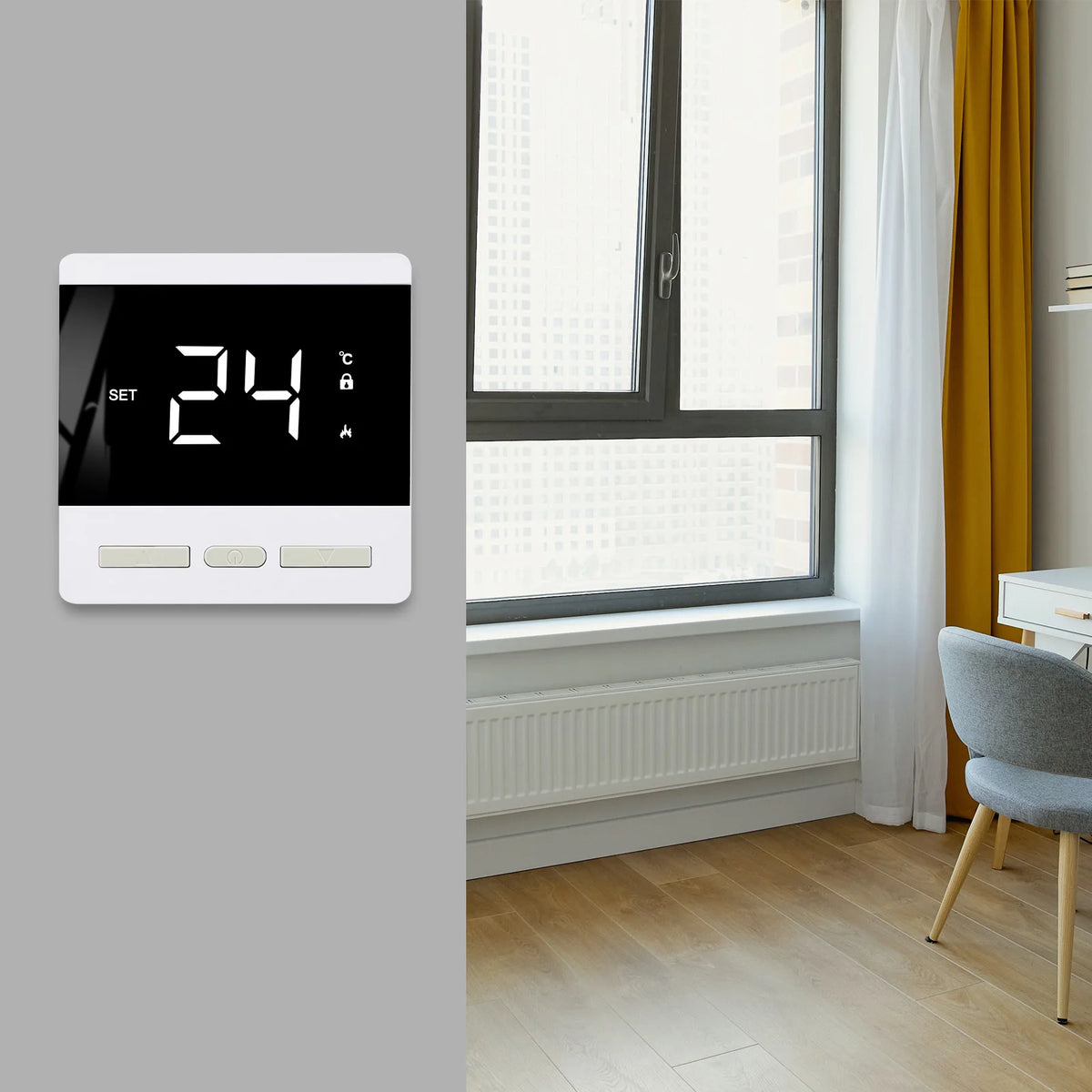

Installation:

This product is installed in 86*86mm type square mounting box. (Not
suitable for standard EU round mounting box)

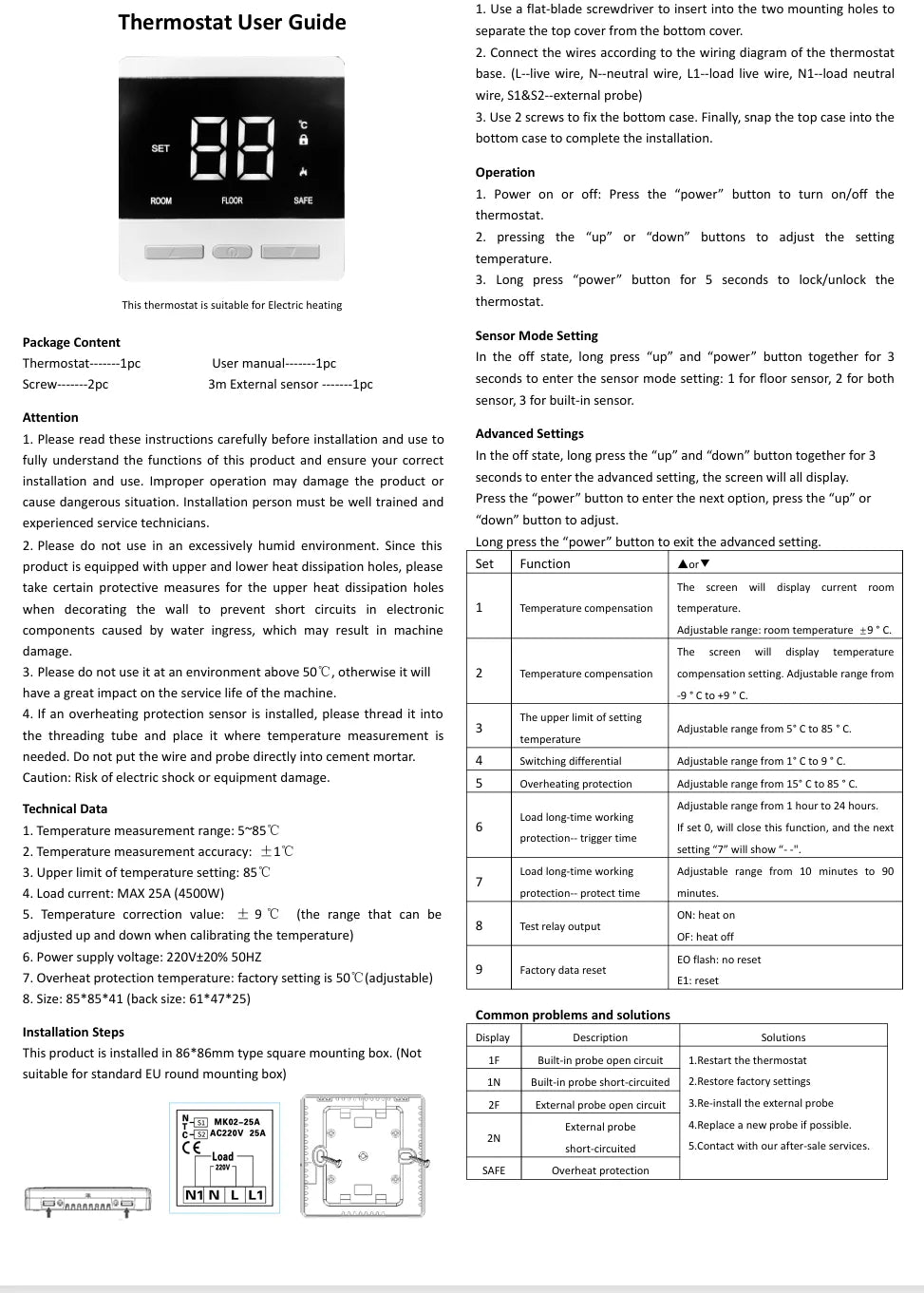

English Manual:

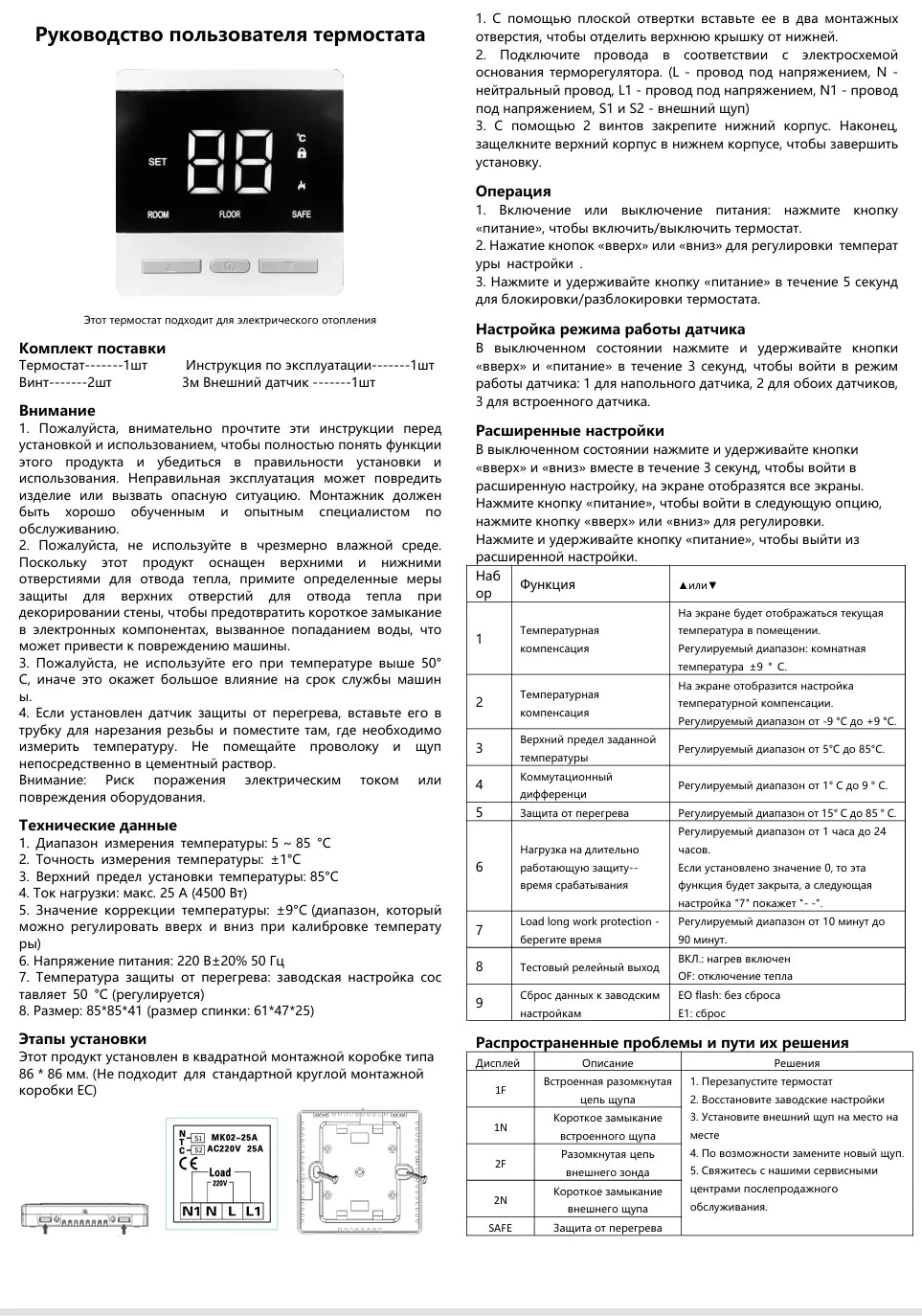

Russian Manual:
