48v 500w E-bike Controller Kit/ThrottleTthumb With Display/3speed/WP Motor Connector
48v 500w E-bike Controller Kit/ThrottleTthumb With Display/3speed/WP Motor Connector
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: Garmata
High-concerned chemical: None
Origin: Mainland China

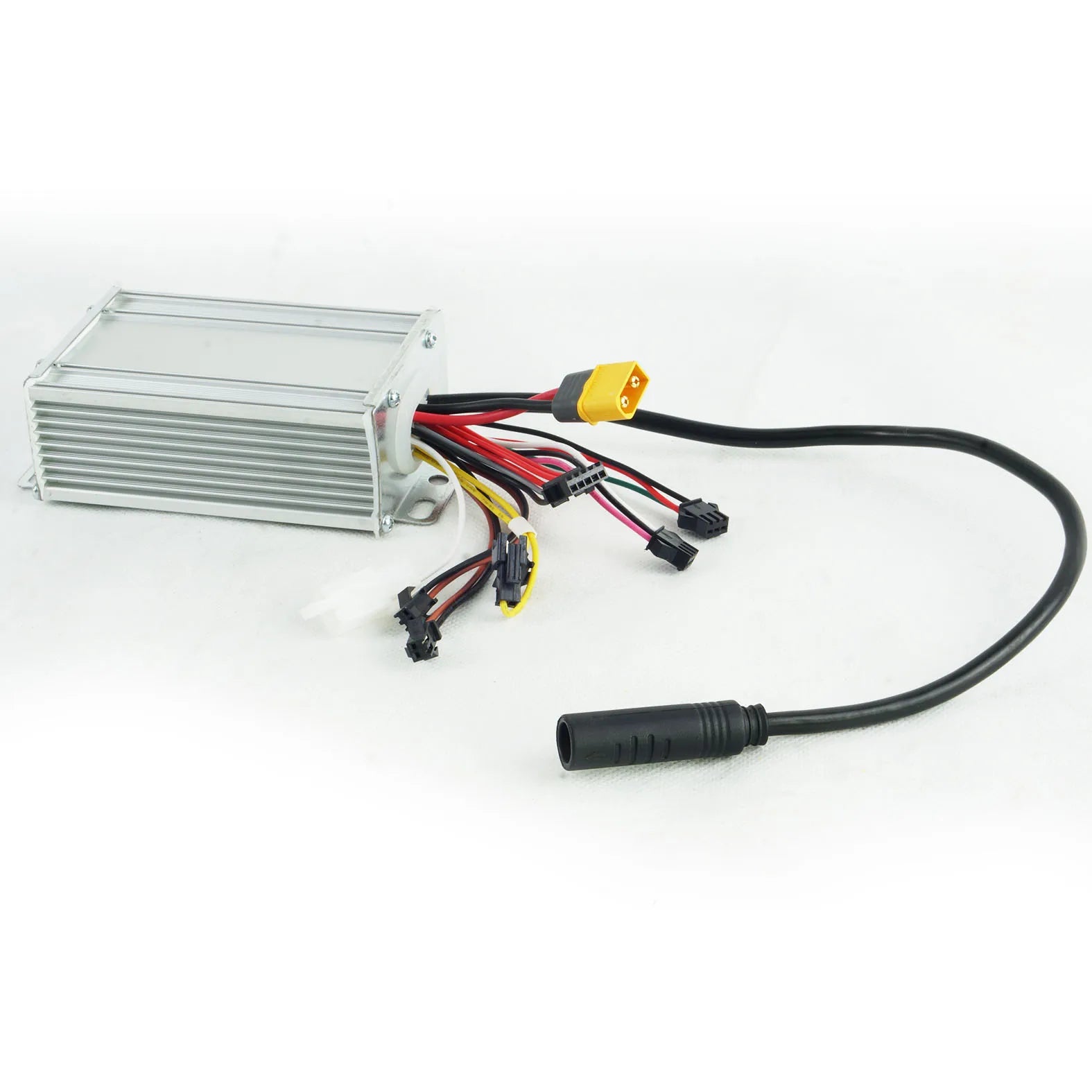

Controller:

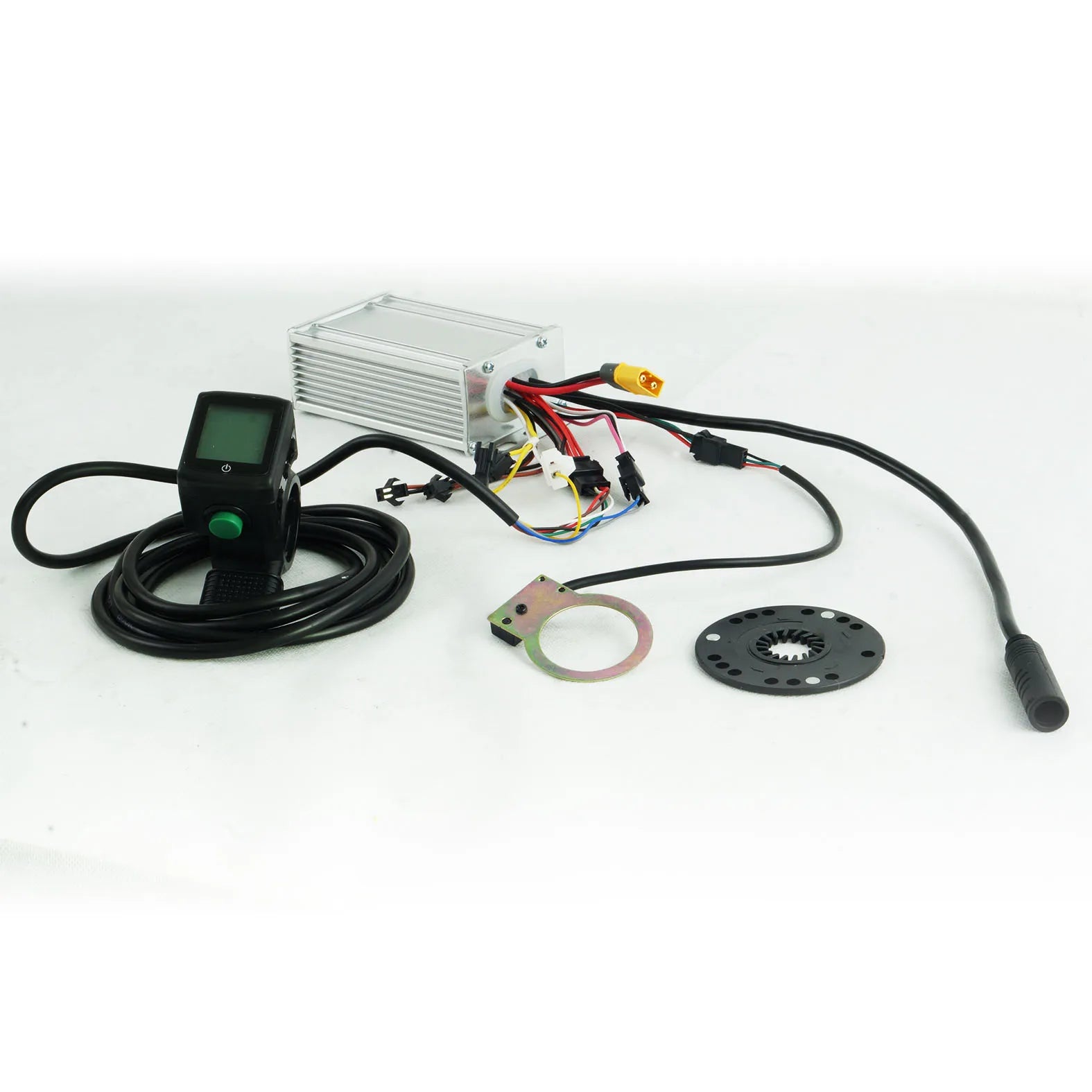

High quality controller kit for most popular e-bikes with direct drive and geared motors.
Power:
48v
17a
6mosfets

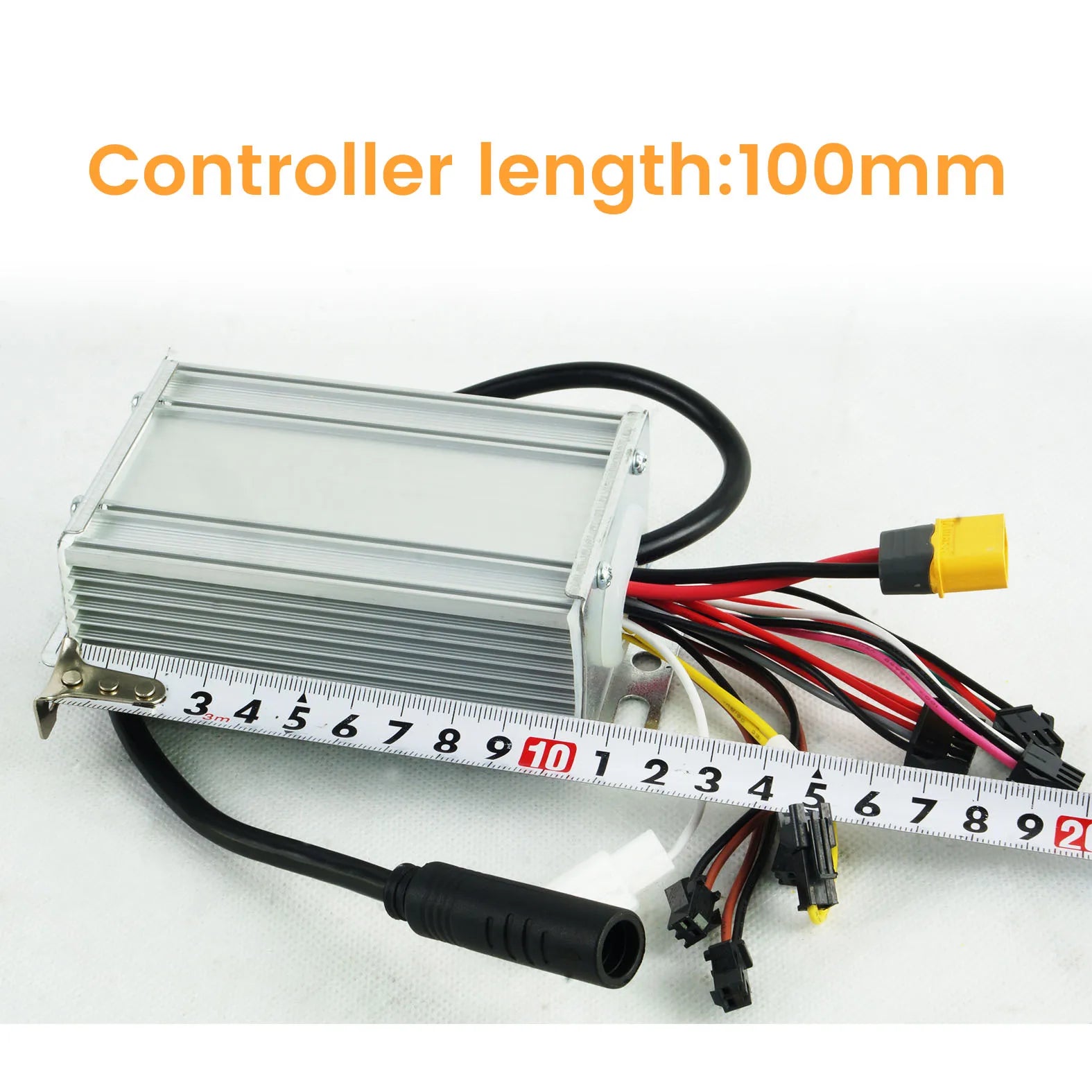

Size: 105x70x35
Function:
Motor study
PAS
Operating mode with damaged hall sensors
3 speed
EABS
Connector 5 pin Female:
Throttle and ON/OFF switch
Black- Ground
Grey- Throttle hall sensor
Red- 5v+
Red- Power + from switch On/Off to controller
Red- Power + from controller to switch On/Off
Can work with direct drive hub motors and with geared motors(with speed sensor inside)

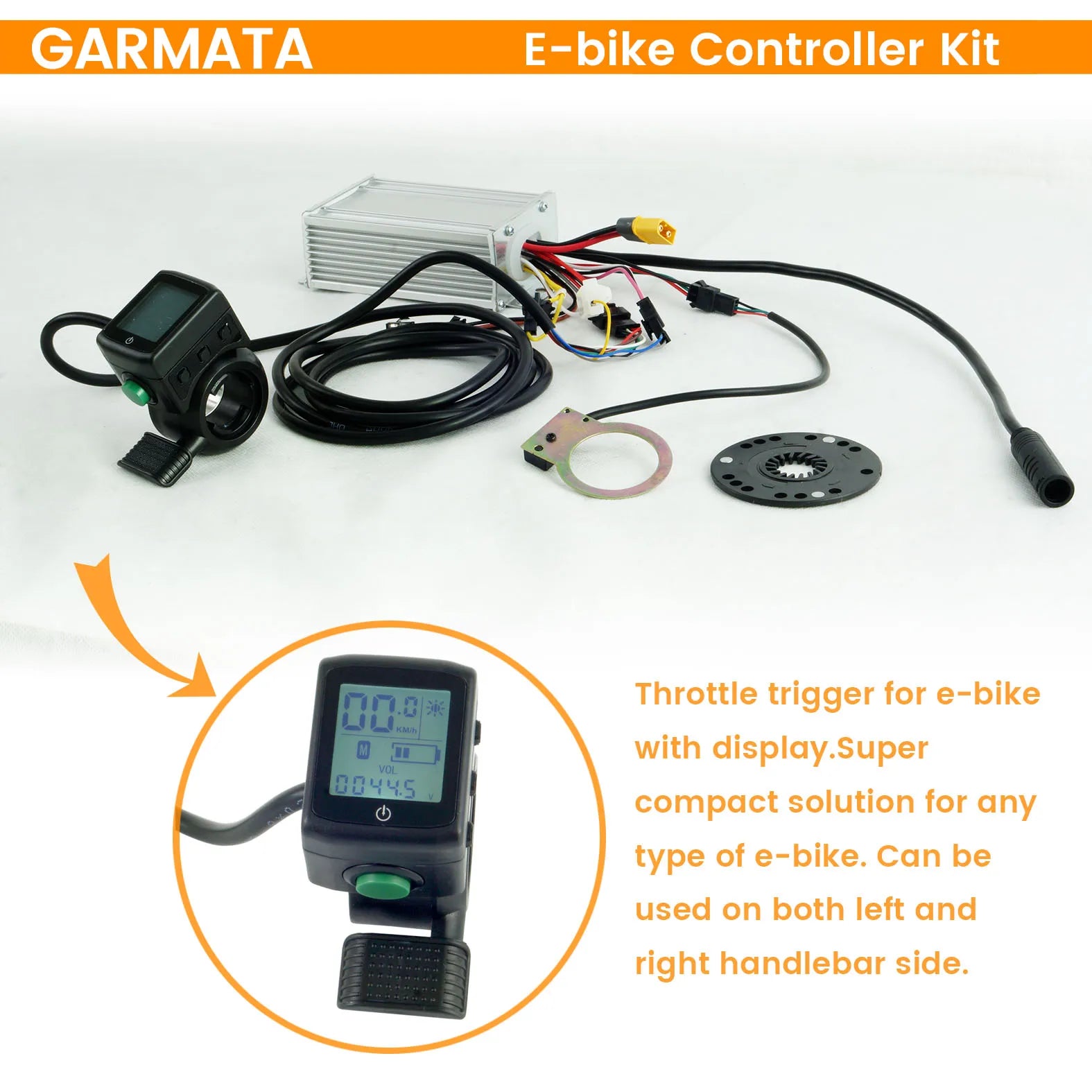

Throttle:
for 48v lithium batteries
speed: mi/h or km/h
3 speeds(controller should support this function also)

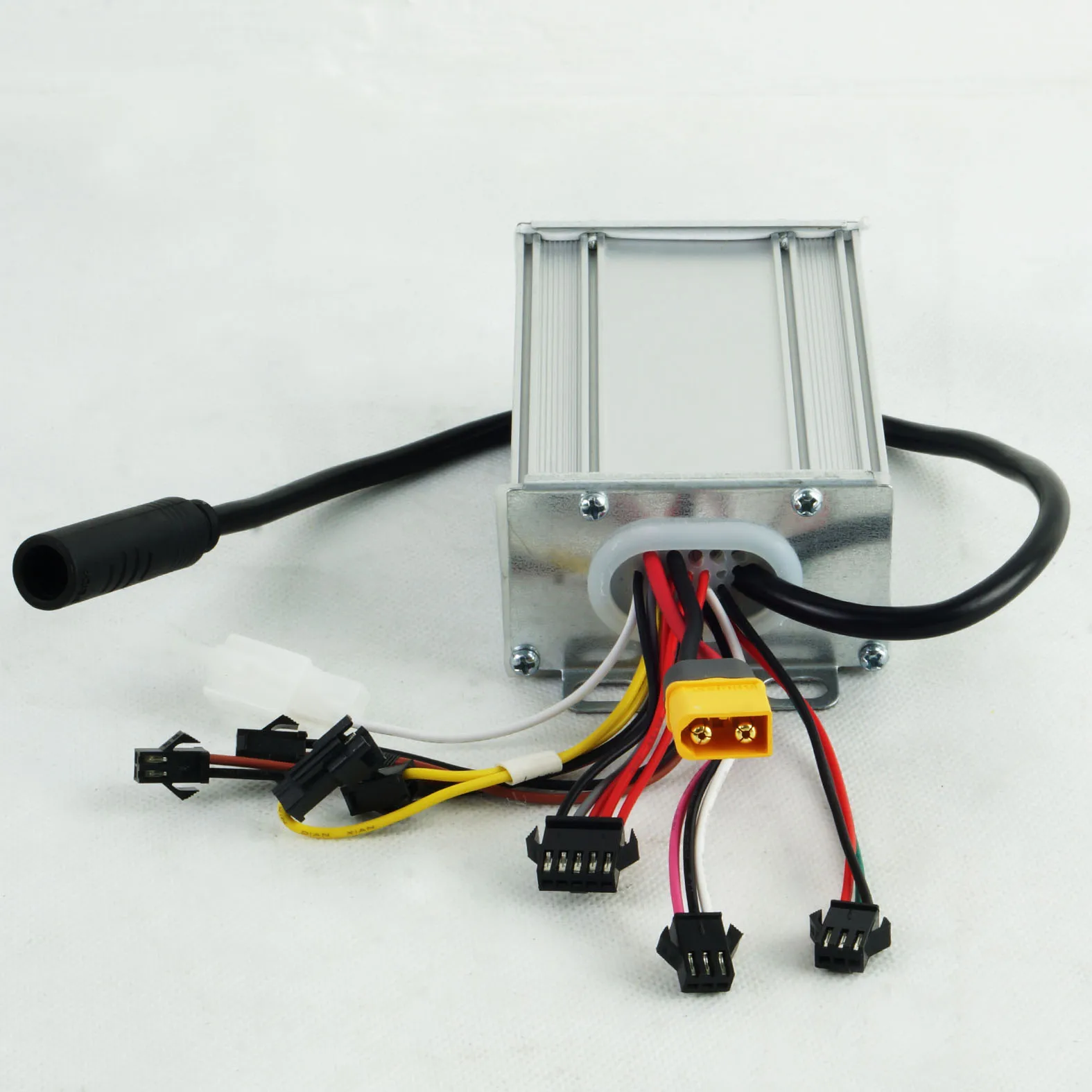

Connectors:
SM3pin- 3peed
SM5pin- controller power, +48v(brown, red); Throttle (white +5v. green- signal; black- GND)
Yellow cable- motor speed sensor.
weight: 140gr

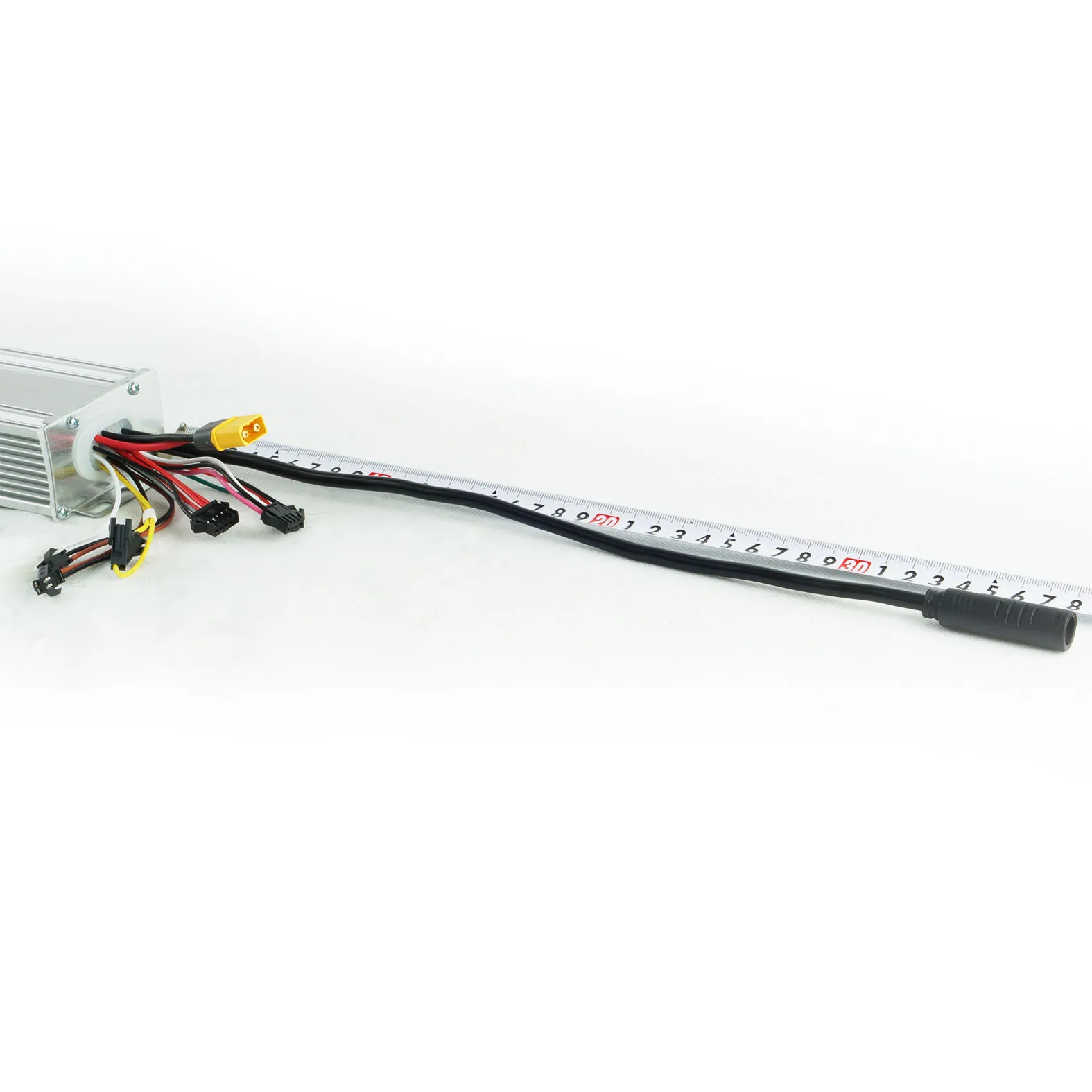

cable length: 2m
odometer
one-time run
run timer
battery voltage
battery indicator
work with a built-in motor speed sensor (for gear motors with a speed sensor) or with a hall sensor (for direct drive motors)
