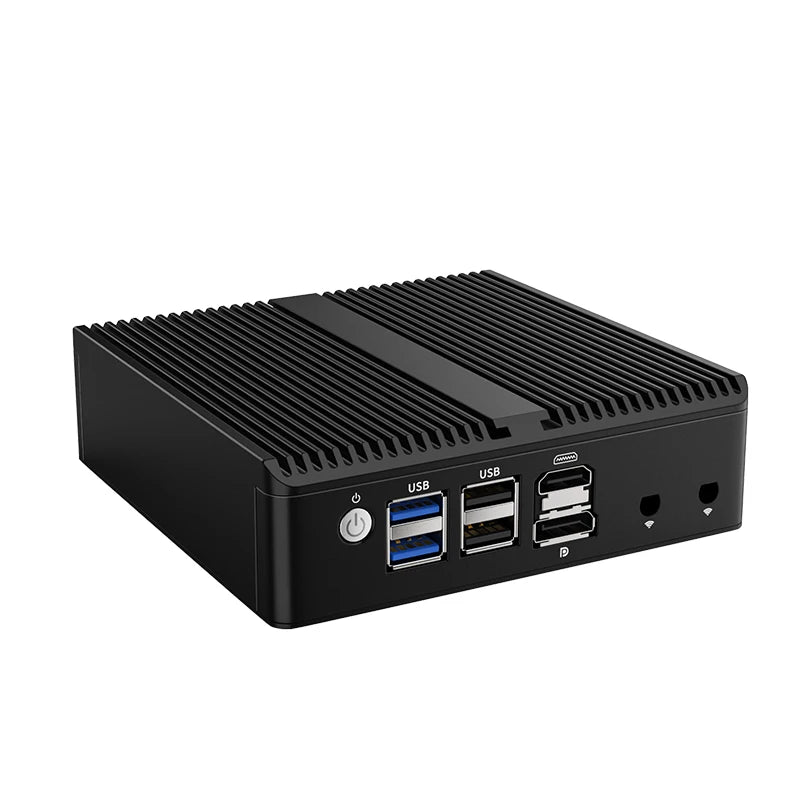

2025 pfSense Firewall Soft Router J6412 N150 N6210 4xIntel i226 2.5G LAN 2xDDR4 NVMe Fanless Mini PC HDMI2.0 DP AES-NI OPNsense
2025 pfSense Firewall Soft Router J6412 N150 N6210 4xIntel i226 2.5G LAN 2xDDR4 NVMe Fanless Mini PC HDMI2.0 DP AES-NI OPNsense
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: tuofudun
Certification: CE,FCC,RoHS
Graphics Card Type: Integrated Card
Hard Drive Capacity: ≤ 40 GB
High-concerned chemical: None
Memory Capacity: ≤ 128MB
Model Number: X2B/X2E
Origin: Mainland China
Processor Brand: Intel
Processor Main Frequency: Depends on CPU
Processor Model: N150/N100/J6412/N6210
Type: Mini Desktop,Mini PC
Use: Commercial
ПРИМЕЧАНИЕ: Обратите внимание, что из-за ограничений по доставке этот товар не может быть доставлен в Россию! Если вам нужен этот товар, продавец рекомендует вам использовать аналогичный брандмауэр, машину Pfsense, вы можете поискать в магазине: модель машины X4B.
Processor parameter for referance only
Processors |
Cores & Threads |
Cache |
Base Frequency |
Max Turbo Frequency |
TDP |
Intel N150 |
4 cores, 4 threads |
6M |
\ |
3.60 GHz |
6W |
Intel N100 |
4 cores, 4 threads |
6M |
\ |
3.40 GHz |
6W |
Celeron J6412 |
4 cores, 4 threads |
4M |
2.00 GHz |
2.60 GHz |
10W |
Celeron N6210 |
2 cores, 2 threads |
4M |
1.20 GHz |
2.60 GHz |
6.5W |
Product Highlight

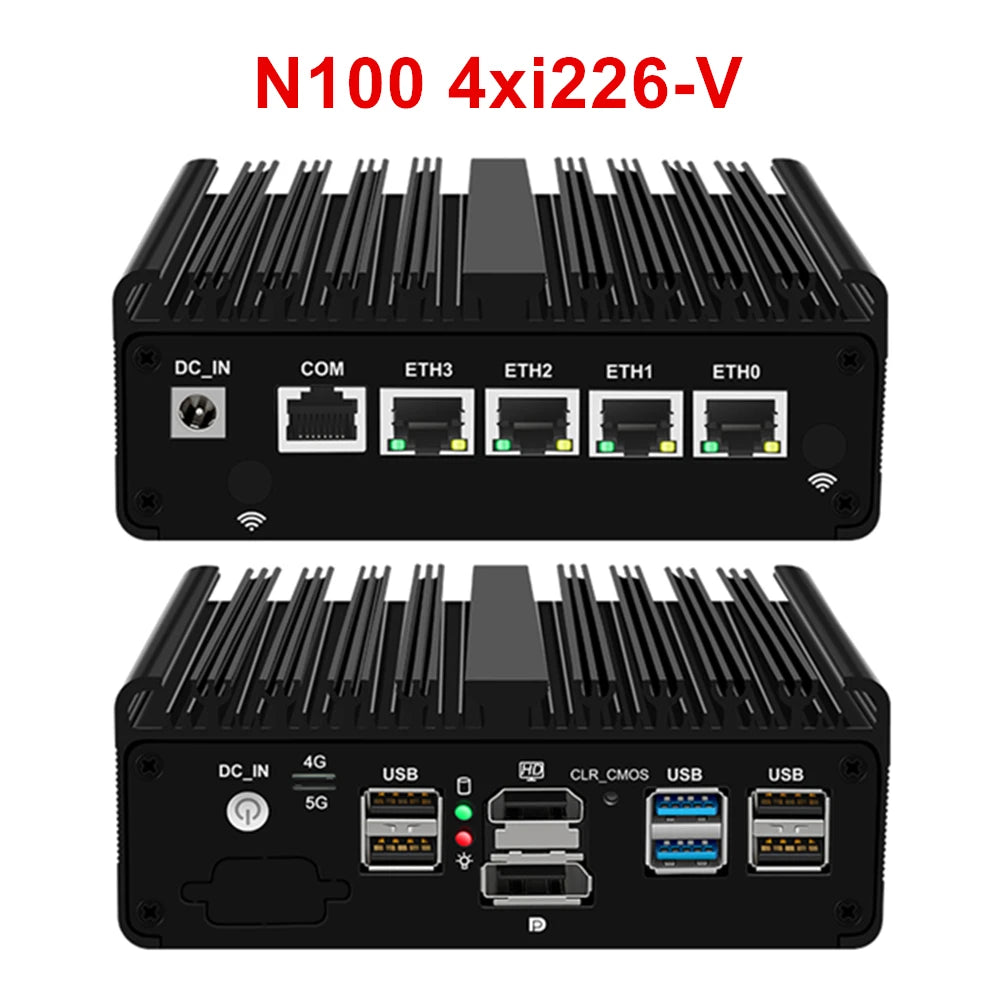

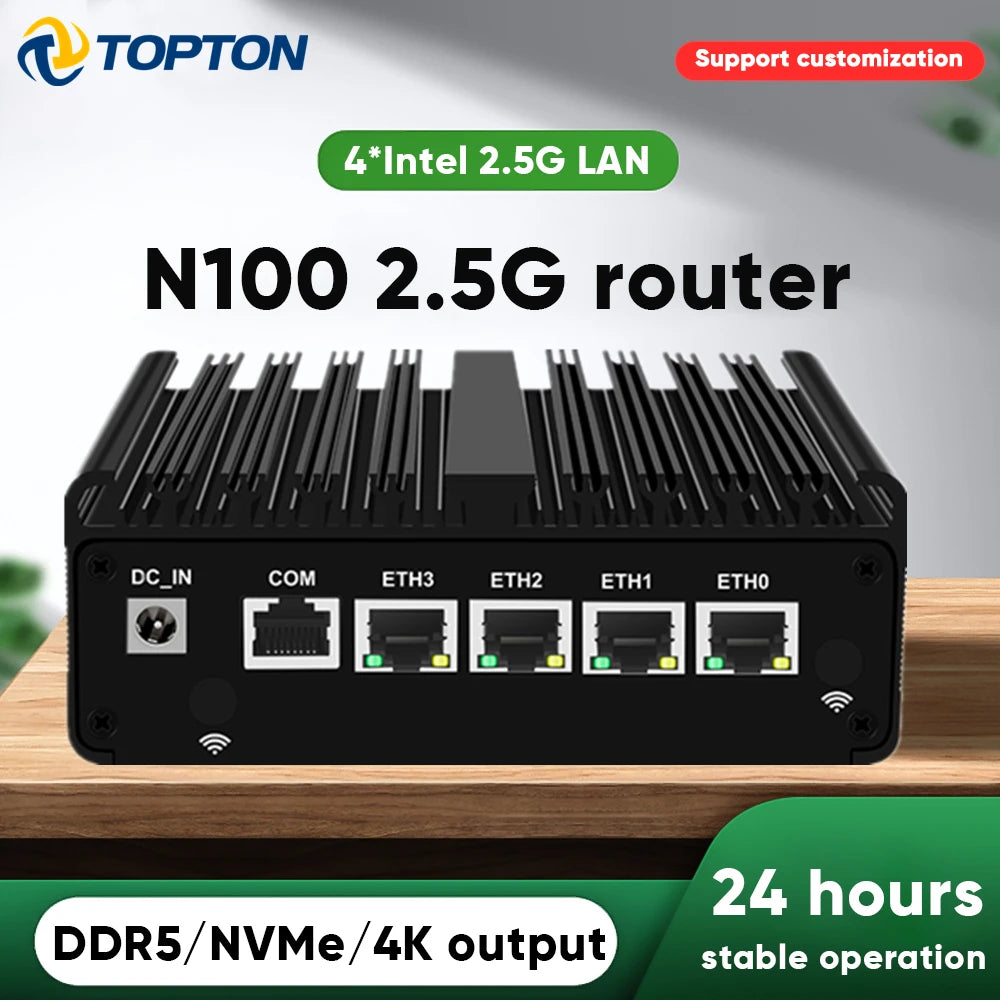

X2E N150/N100 model:

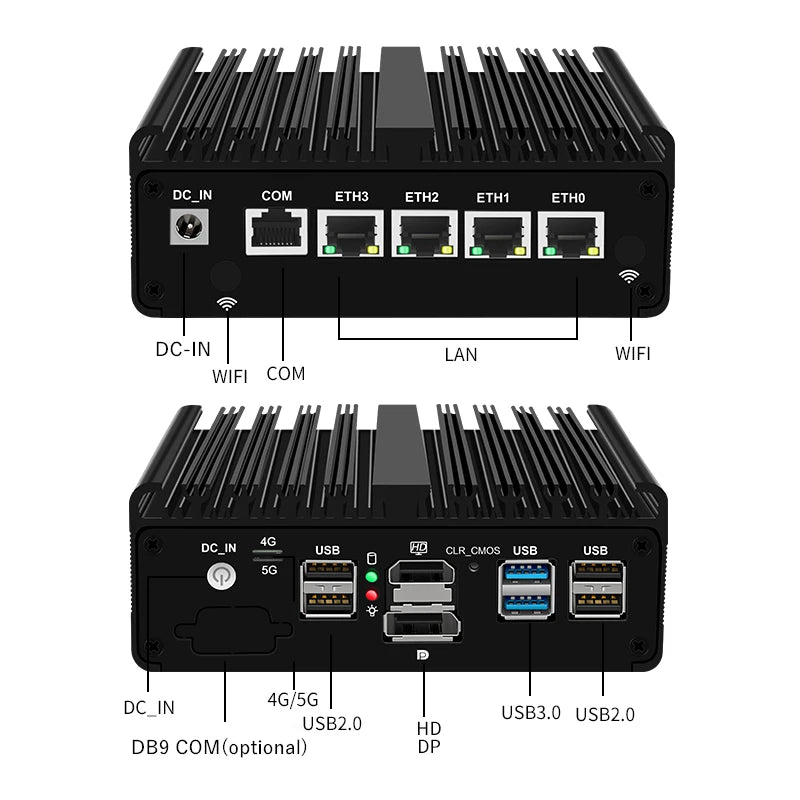

-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 4xUSB2.0, 1xRJ45 COM console, 1x5G SIM slot, 1x4G/3G SIM slot, DB9 COM RS232 or RS485 is optional to buy.
-1xDDR5 SODIMM non-ecc ram slot, support 4800MHz.

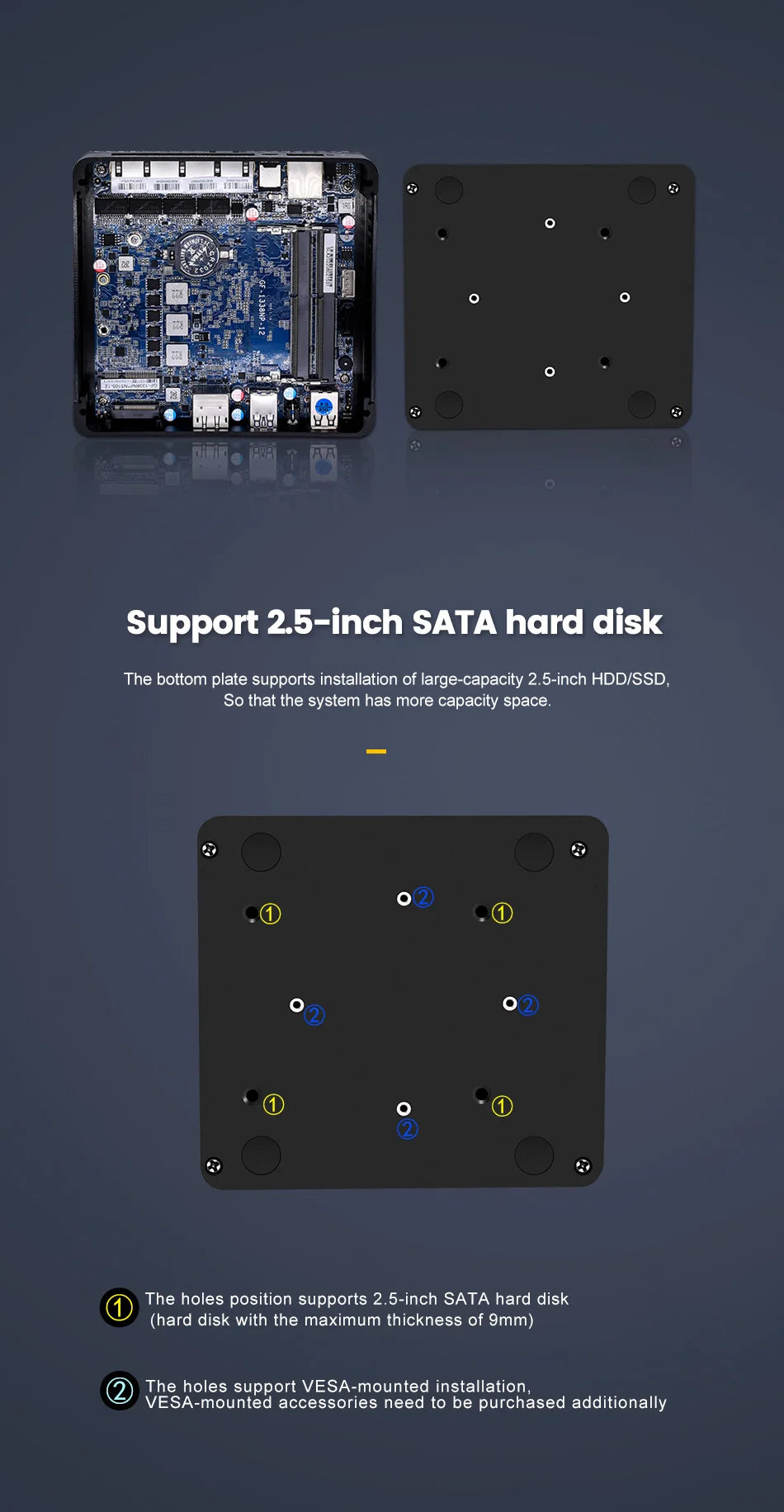

-Support two storage: 1xM.2 NVMe/PCIe3.0x1 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/5G/4G/3G(USB protocol) connection(optional to buy).

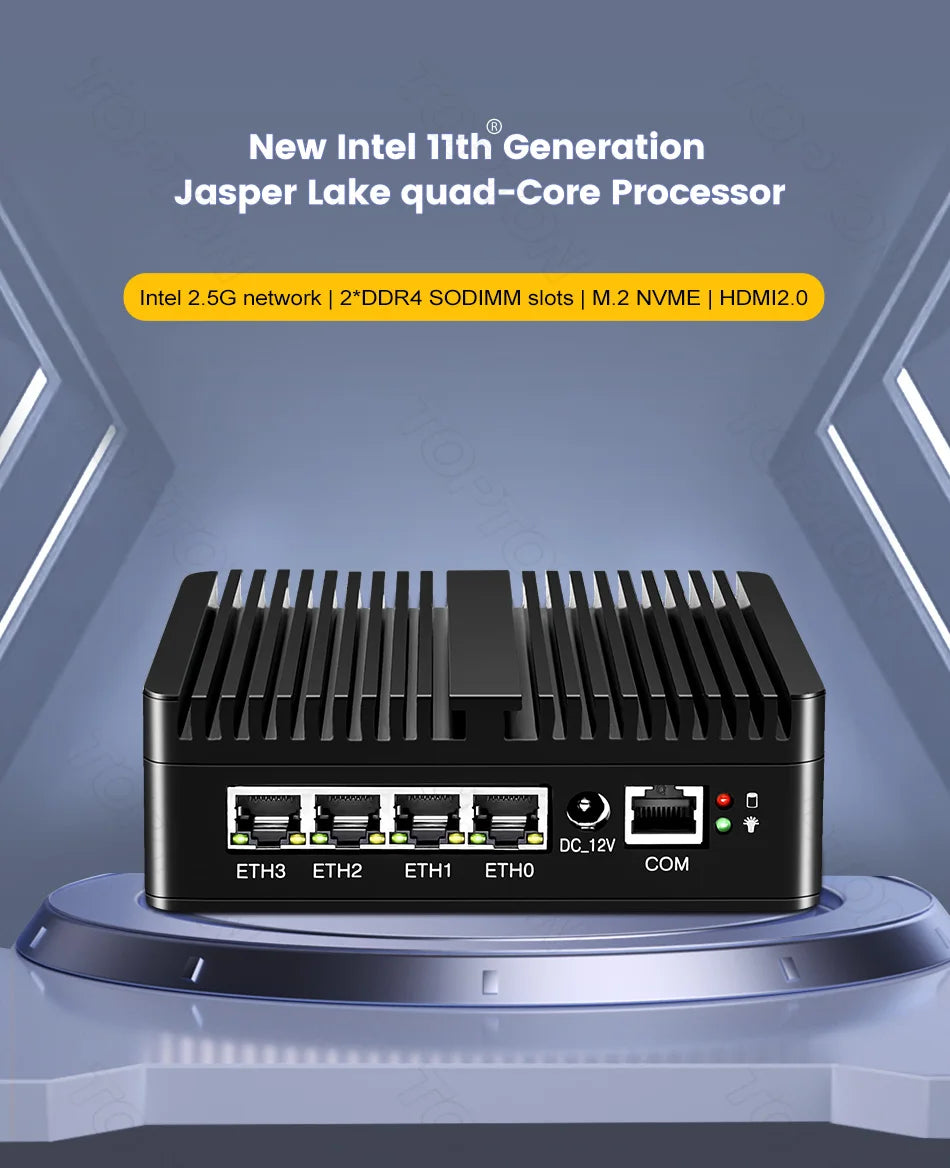

X2B J6412/N6210 model:
-4xIntel i226-V 2.5G RJ45 LANs, 2xUSB3.0, 2xUSB2.0, 1xRJ45 COM console, 1x4G/3G SIM slot.
-2xDDR4 SODIMM non-ecc ram slots, support 2666/3200MHz.
-Support two storage: 1xM.2 NVMe/PCIe3.0x2 2280 SSD+1x2.5''SATA3.0 7mm SSD/HDD.
-1xSIM slot, 1xMPCIE wireless slot, support WiFi/4G/3G(USB protocol) connection(optional).
-Support 1xHDMI2.0 and 1xDP dual 4K video display.
-Support AES-NI, ESXI, PVE, Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN etc.

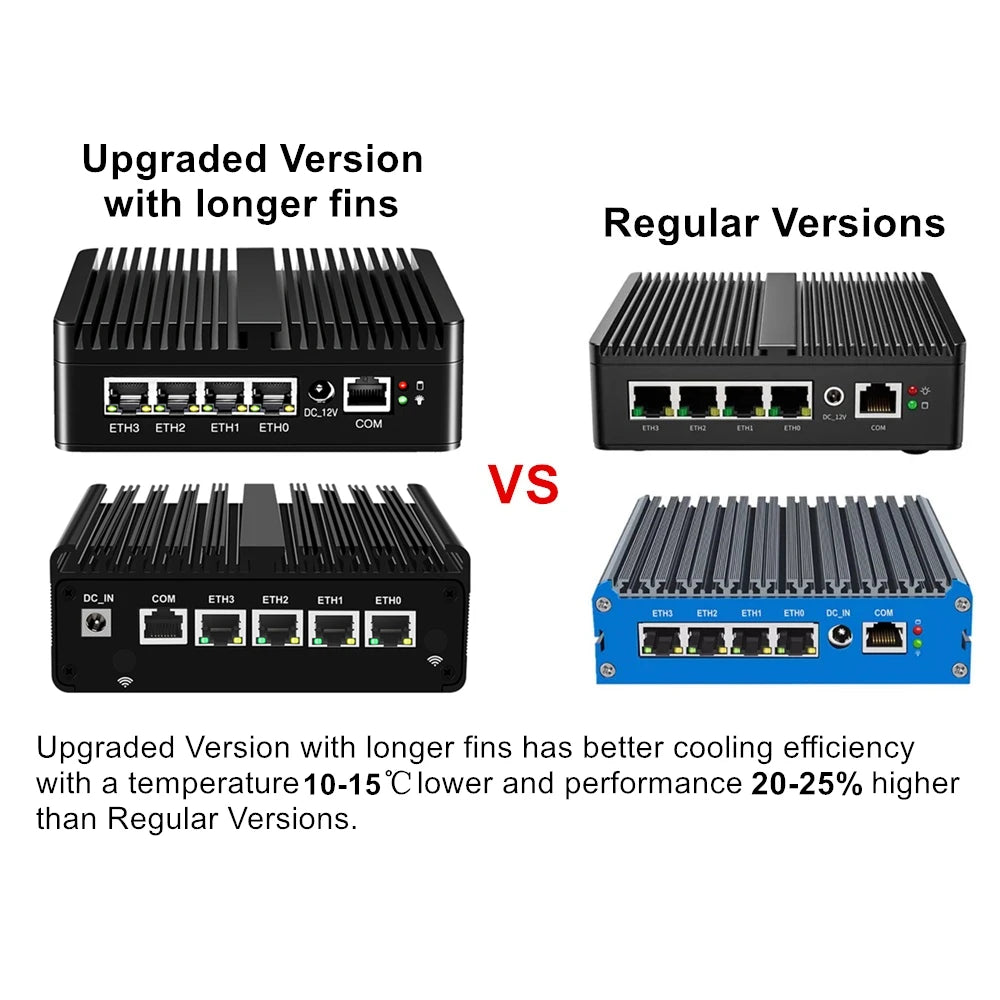

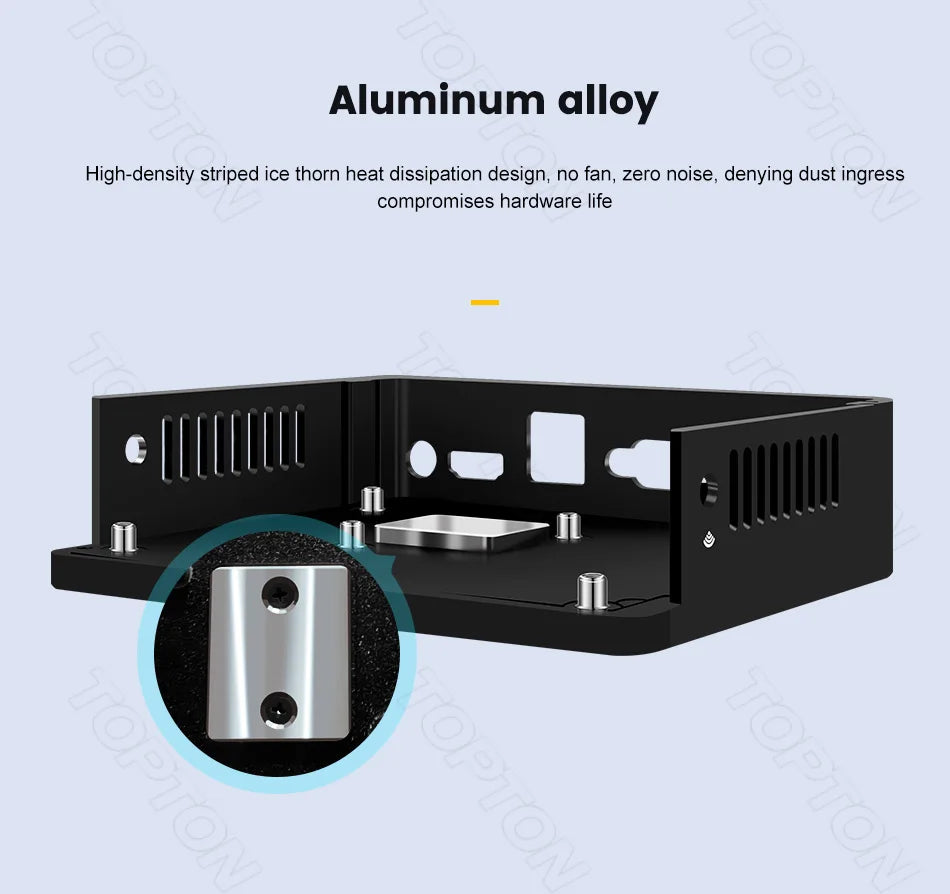

-All aluminum alloy fanless system with longer fins has better cooling efficiency with a temperature 10-15℃ lower and performance 20-25% higher than regular versions on the market. It has a longer working life time, noiseless and durable to work as long as 7x24 hours. Also it is a good option to add a USB fan if you have.

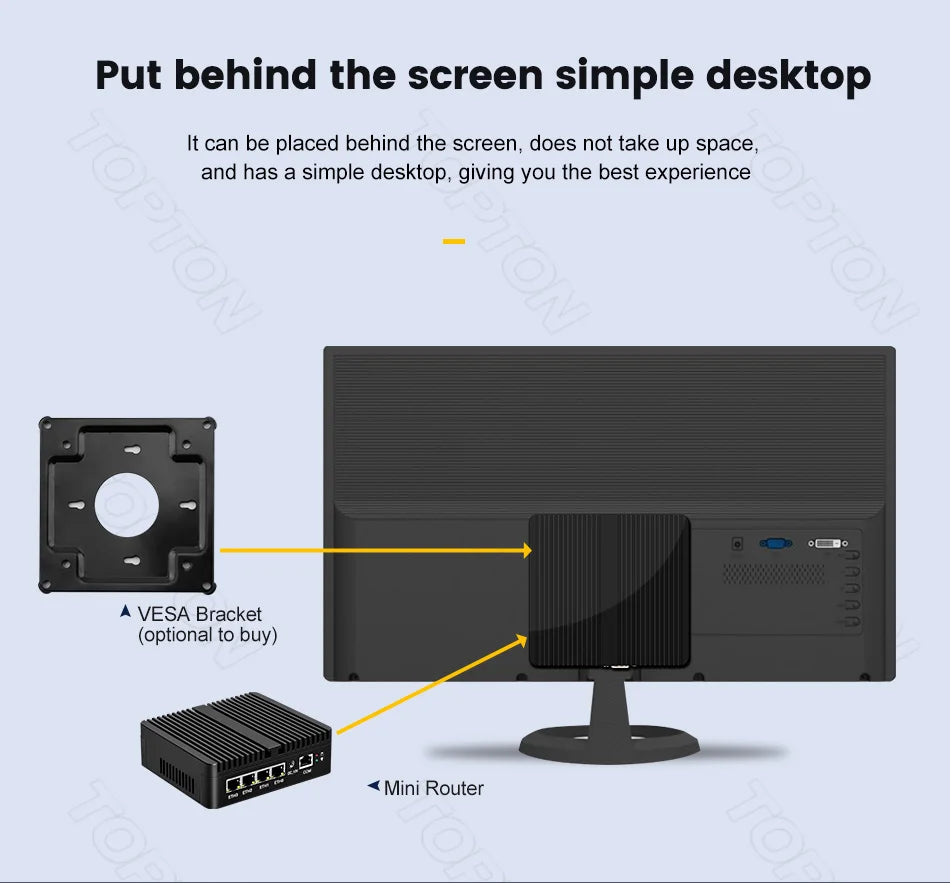

-It can be mounted back of monitor by VESA bracket(optional).
Package List
1xMini PC
1xPower Adapter
1xPower Cord(EU/US/UK/AU plug based on buyer's country)
1xSATA Cable
1xScrews Bag
All bundles on sale DO NOT include WiFi/3G/4G module(antennas), WiFi module cost US $10(USB protocol), 3G module cost US $50, 4G module cost US $70. If you need, pay atthis link.
N100 model:
N6000/N5105/J4125 model:
Welcome to click the picture of VESA Bracket to order together if you need:
500GB 2.5'' HDD add extra 50$, 1TB 2.5'' HDD add extra 65$, 2TB 2.5'' HDD add extra 100$.
Upgrading link:https://www.aliexpress.com/item/32738298207.html
(How many dollars to upgrade, pay how many pieces, US$1=1pcs, For example upgrade 1TB 2.5'' HDD, pay 65pcs for US$65, remember to leave message noting which one you upgrade for...)
